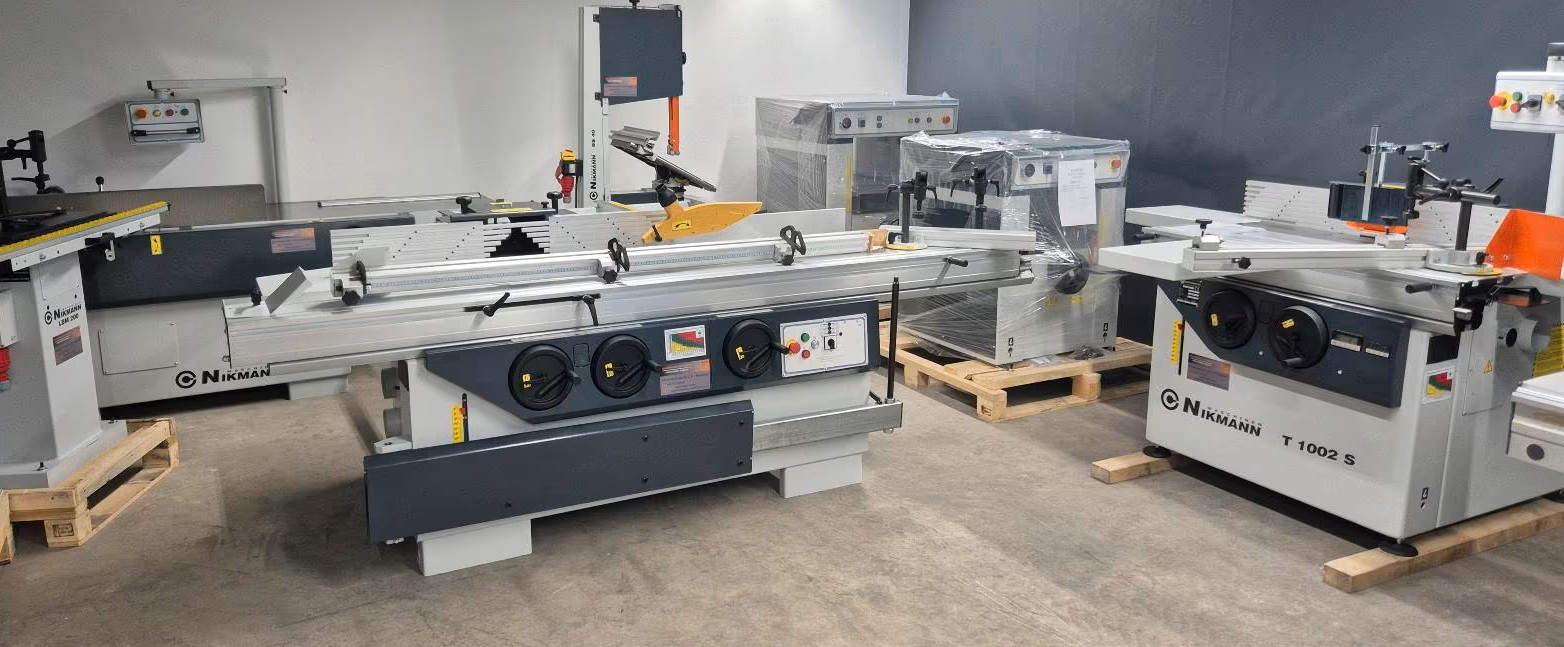

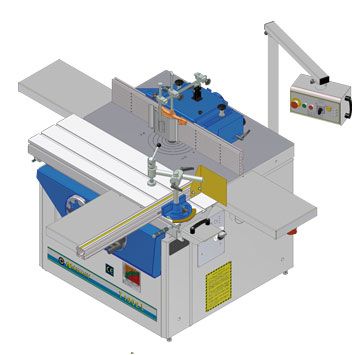

Nikmann T 1002 S/L fræser med kipbar spindel 45°

Nikmann T 1002 S/L fræser med kipbar spindel 45°

Aluminum sliding table with hardened steel high-precision guides. Large heavy work table made of cast ironDiameter of the opening in the working table ø260 mm with aspiration under the working table. Spindle protector for profiling with diameter ø250 mm. Support safety guides 350 mmElec-tronic reading of the revolutionsMounted device for spindle blocking6 speeds of rotationSpindle tilting to the backChangeable arbor MK 4Electronic brake for electrodynamic stopping.

L

STANDARD PERFORMANCE  T 1002 S   T 1002 L
Working table dimensions, mm 1000 x 650 1000 x 650
Sliding table dimensions, mm 1150 x 350 1600 x 350
Changeable arbor, Morse cone MK4 MK4
Diameter of the arbor, mm Ø 30 Ø 30
Spindle tilting to the back 90° / 45° 90° / 45°
Vertical movement of the spindle, mm 180 180
Working height of the spindle, mm 125 125
Max. tool diameter, mm:

–  for profiling

–  for tenoning



ø250

ø300



ø250

ø300

Motor power (2-speeds), kW (HP) 3.2/4.0 (4.3/5.5)
Spindle speed, min-1 10000/ 8000/ 6000/

5000/ 4000/ 3000

Weight, kg 430 446
OPTIONS
Sliding table 2300 mm
Motor power, kW (HP) 4.5 / 5.5 (6.1 / 7.4)
Integral safety guides, mm 350, 500

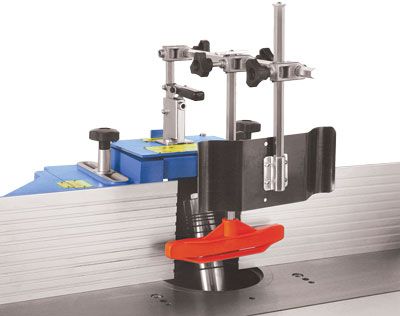

Clamping device MORI
Tenoning table and tenoning hood, mm Ø 320
Left / right spindle rotation
Bracket table to the sliding table
Extension tables from the left and the right sides
Telescopic fence 900 mm with 2 stops
Changeable arbor, МК4 mm ø1 1/4″,ø32, ø35, ø40, ø50

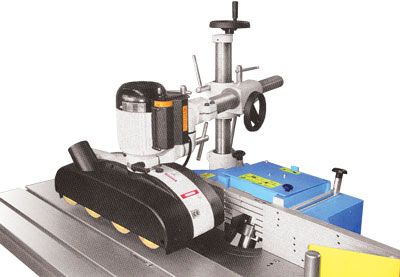

Feeder MX 38, MX 48
