Nikmann SF 3 kombineret fræser – rundsav
Nikmann SF 3 kombineret fræser – rundsav

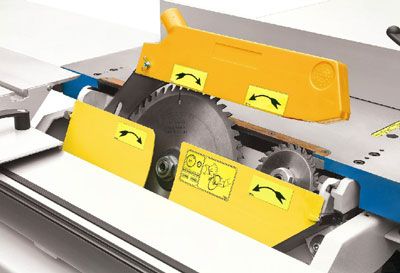

Aluminum sliding table with hardened steel high-precision guides. Telescopic fence 1400 mm with two turn able supports. Rip fence with micrometric adjustment. Saw blade tilt to 45° with scale report. Diameter of the opening in the working table ø190 mm with aspiration under the working table. No tilting spindle. Spindle protector with diameter ø180 mm. Width of cutting with the rip fence 850 mm.
| STANDARD PERFORMANCE | SF 3 |
| CIRCULAR SAW | |
| Saw blade diameter – max /min | Ø 315/ Ø 250 |
| Spindle diameter, mm | Ø 30 |
| Maximal length of cutting with scoring unit, mm | 1200 |
| Maximal width of cutting with the rip fence, mm | 850 |
| Maximal height of cut 90°/45°, mm | |
| – With disk Ø 315 mm | 102 / 72 |
| – With disk Ø 250 mm | 70 / 49 |
| Motor power, kW (HP) | 2.2 (3.0) |
| Spindle speed, min-1 | 4000 |
| Dust collection port diameter, mm | Ø 120 |
| SPINDLE MOULDER | |
| Spindle diameter, mm | Ø 30 |
| Vertical movement of the spindle, mm | 160 |
| Working height of the spindle, mm | 125 |
| Max. tool diameter, mm:
for profiling for tenoning |
Ø 180 Ø 320 |
| Diameter of the openings in the working table | Ø 190 |
| Max. diameter /depth of the tool moving under the working table surface, mm | Ø180 / 75 |
| Spindle speed, min-1 | 8000/ 6000/
3500/ 1500 |
| Motor power, kW (HP) | 2.2 (3.0) |
| Dust collection port diameter, mm
under the working table; by the safety device |
Ø 120 Ø 120 |
| Spindle protector with supporting guides, L, mm | 350 |
| GENERAL TECHNICAL DATA | |
| Working table dimensions, mm | 1250 x 450 |
| Sliding table dimensions, mm | 1500 х 285 |
| Overall dimensions, L x B x H, mm | 3155х1965х1341 |
| Weight, kg | 520 |
| Required area, m | 5.0 x 6.0 |
| OPTIONS | |
| Scoring unit with: | |
| Saw blade diameter, mm | Ø 120 |
| Spindle diameter, mm | Ø 20 |
| Spindle speed, min-1 | 8000 |
| Motor power, kW (HP) | 0.55 (0.75) |
| Motor power main circular, kW (HP) | 4.0 (5.5) |
| Miter fence without extension, mm | 900, 1219 |
| Maximal width of cut with the rip fence – complete extension table and rip fence, mm | 1150 |
| Dust extraction pipe with hose | 850, 1150 |
| Short fence with angle stops | |
| Bracket table with telescopic support, telescopic fence with 2 turn able stoppers | |
| Integral safety guides for spindle protector, mm | 350, 500 |
| Support safety guides for spindle protector, mm | 500 |
| Motor power (3-fases 400V 50 Hz), kW (HP) | 3.0 (4.0) |
| Motor power (1-fases 230V 50Hz), kW (HP) | 2.2 (3.0) |
| Milling spindle: diameter / usable height, mm | Ø1 ¼”/125, Ø32/125, Ø35/125 |
| Tenoning table and tenoning hood, mm | Ø 320 |
| Eccentric clamping device | |
| Bracket table 500x320mm to the sliding table | |
