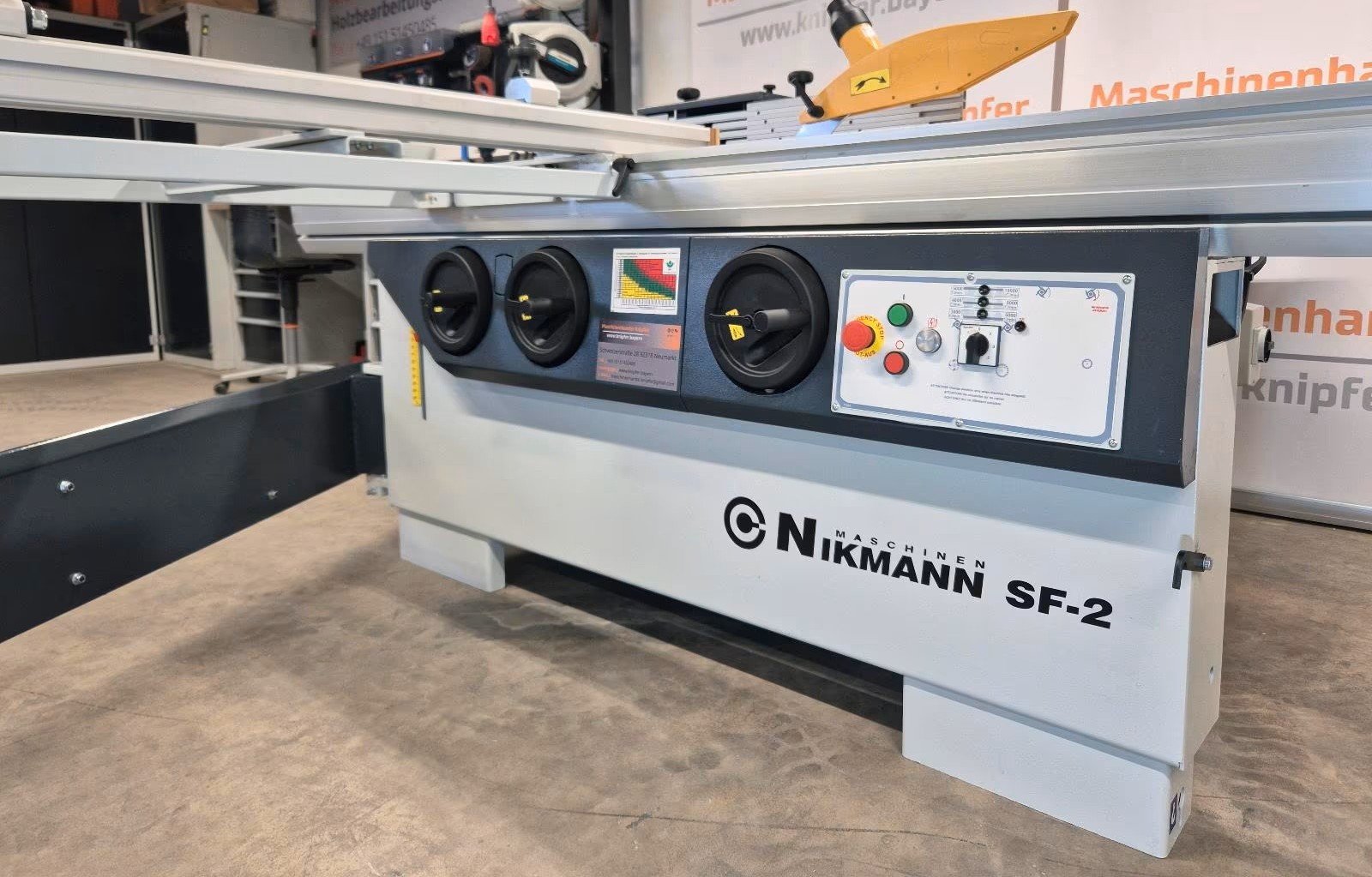

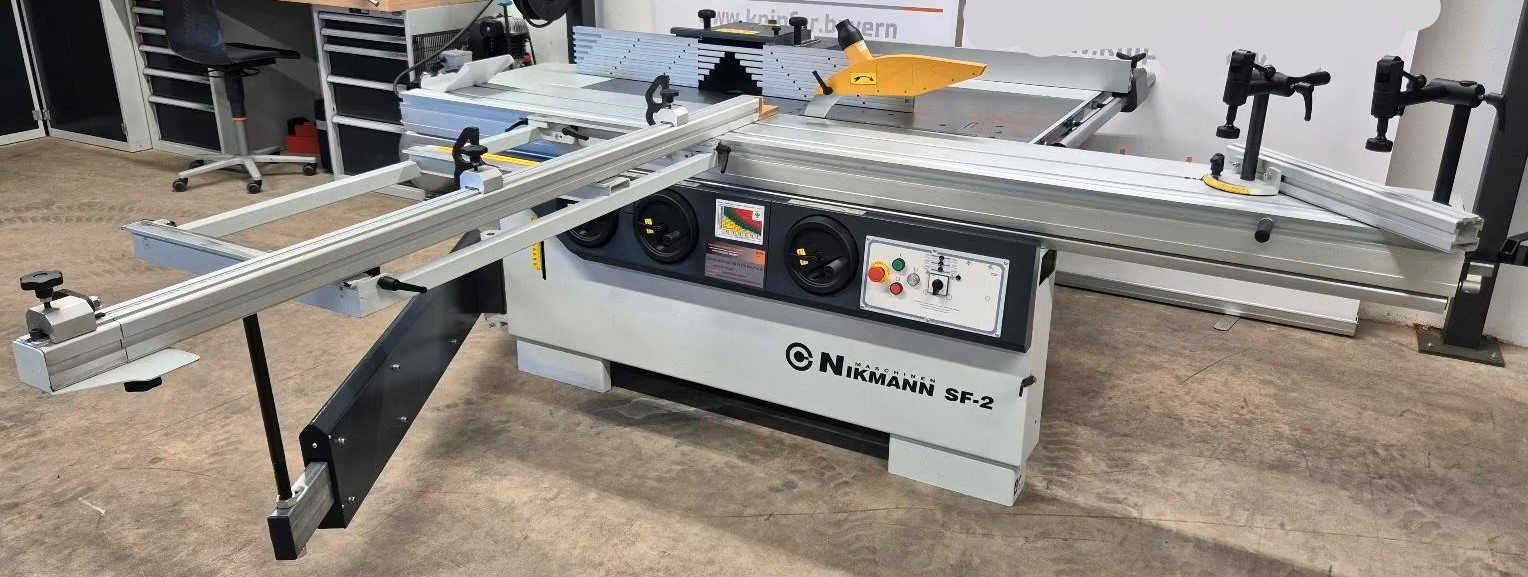

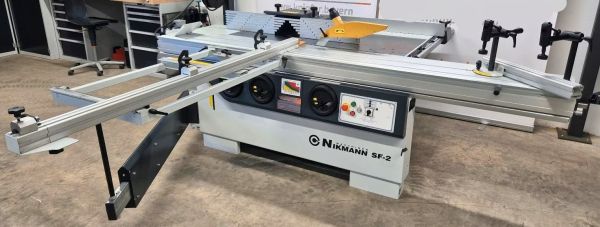

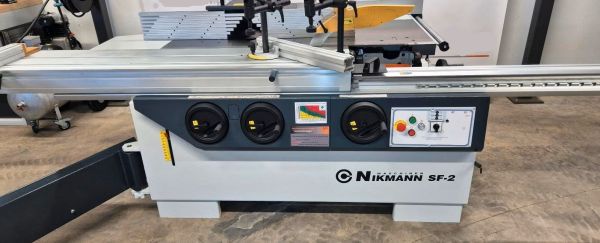

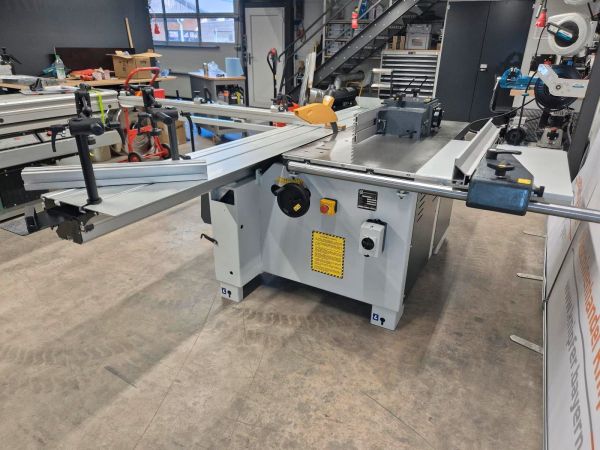

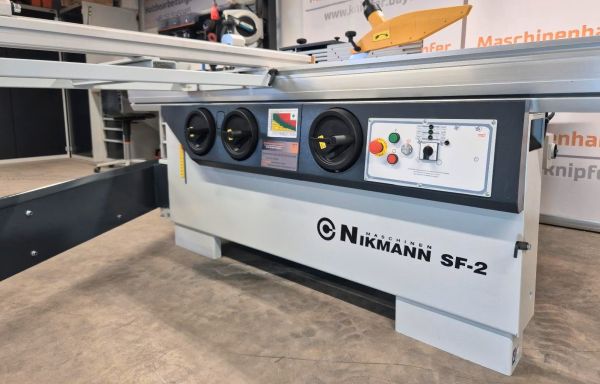

Nikmann SF 2 kombineret fræser – rundsav
Nikmann SF 2 kombineret fræser – rundsav med kipbar rundsav og fræser

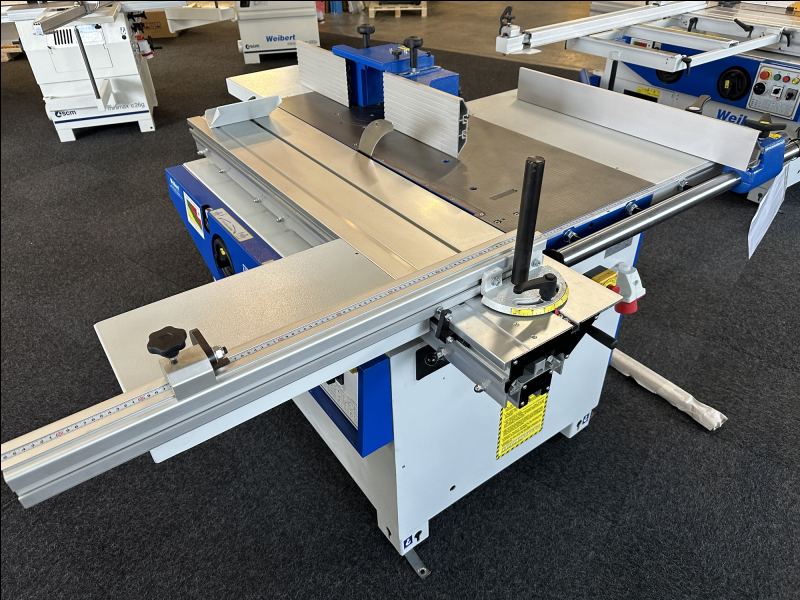

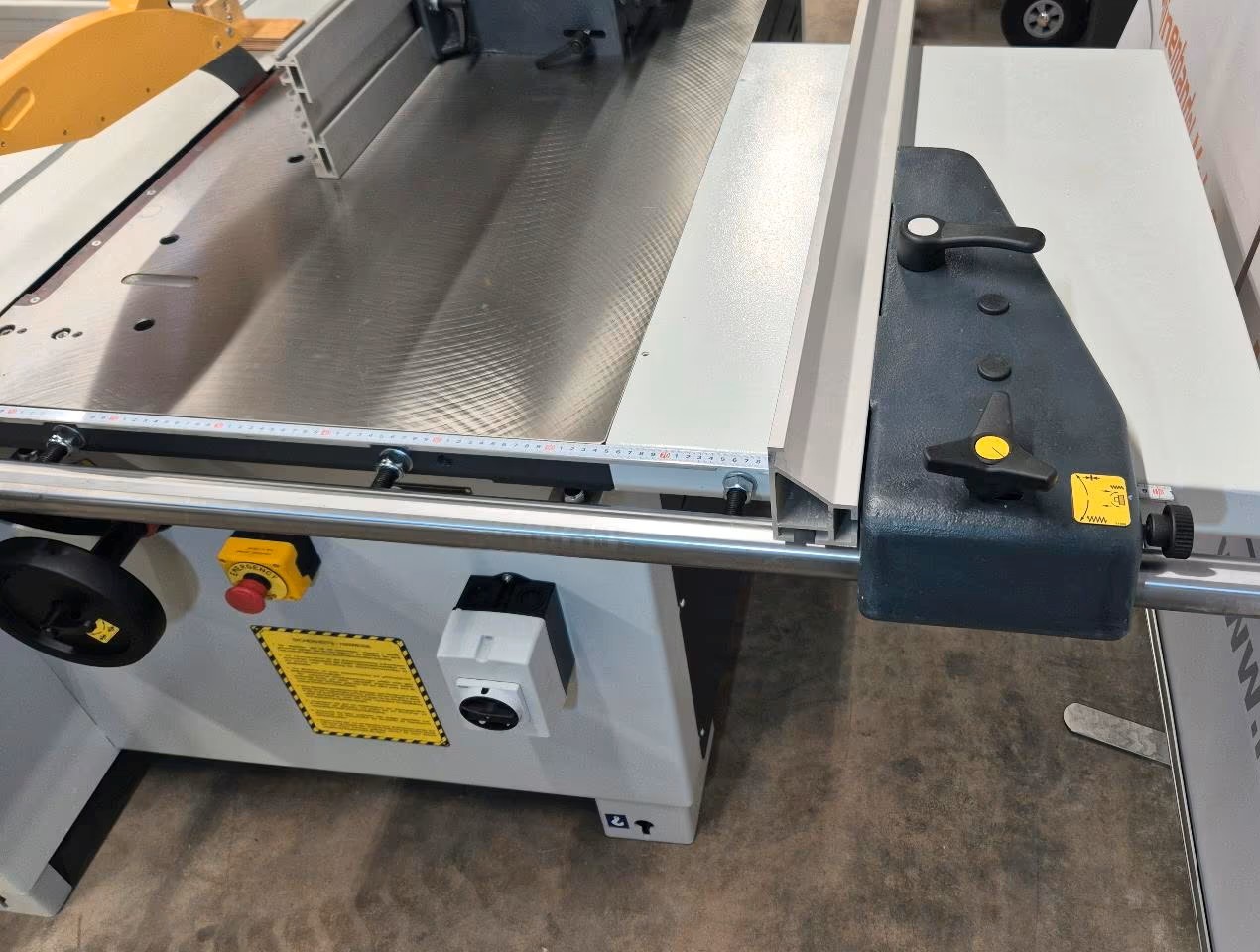

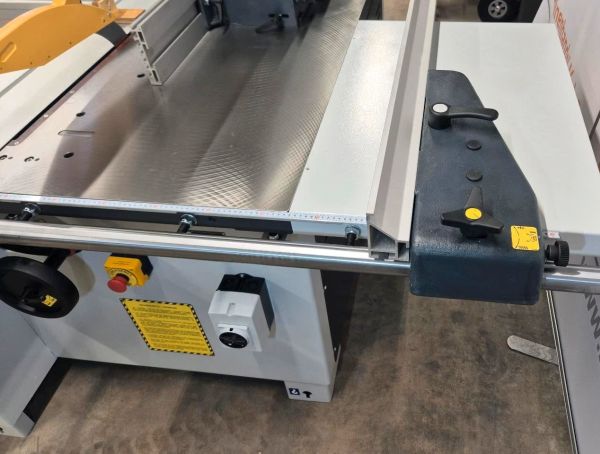

Aluminum sliding table with hardened steel high-precision guides. Telescopic fence 1800 mm with two turn able supports. Rip fence with micrometric adjustment. Saw blade tilt to 45° with scale report. Diameter of the opening in the working table ø260 mm with aspiration under the working table. Spindle tilting to the back. Changeable arbor MK 4. Spindle protector with diameter ø250 mm. Width of cutting with the rip fence 1080 mm.
| STANDARD PERFORMANCE | SF 2 |
| CIRCULAR SAW | |
| Saw blade diameter – max /min | Ø 315/ Ø 250 |
| Spindle diameter, mm | Ø 30 |
| Maximal length of cutting with scoring unit, mm | 2150 |
| Maximal width of cutting with the rip fence, mm | 1080 |
| Maximal height of cut 90°/45°, mm | |
| – With disk Ø 315 mm | 102 / 72 |
| – With disk Ø 250 mm | 70 / 49 |
| Motor power, kW (HP) | 3.0 (4.0) |
| Spindle speed, min-1 | 4000 |
| Dust collection port diameter, mm | Ø 120 |

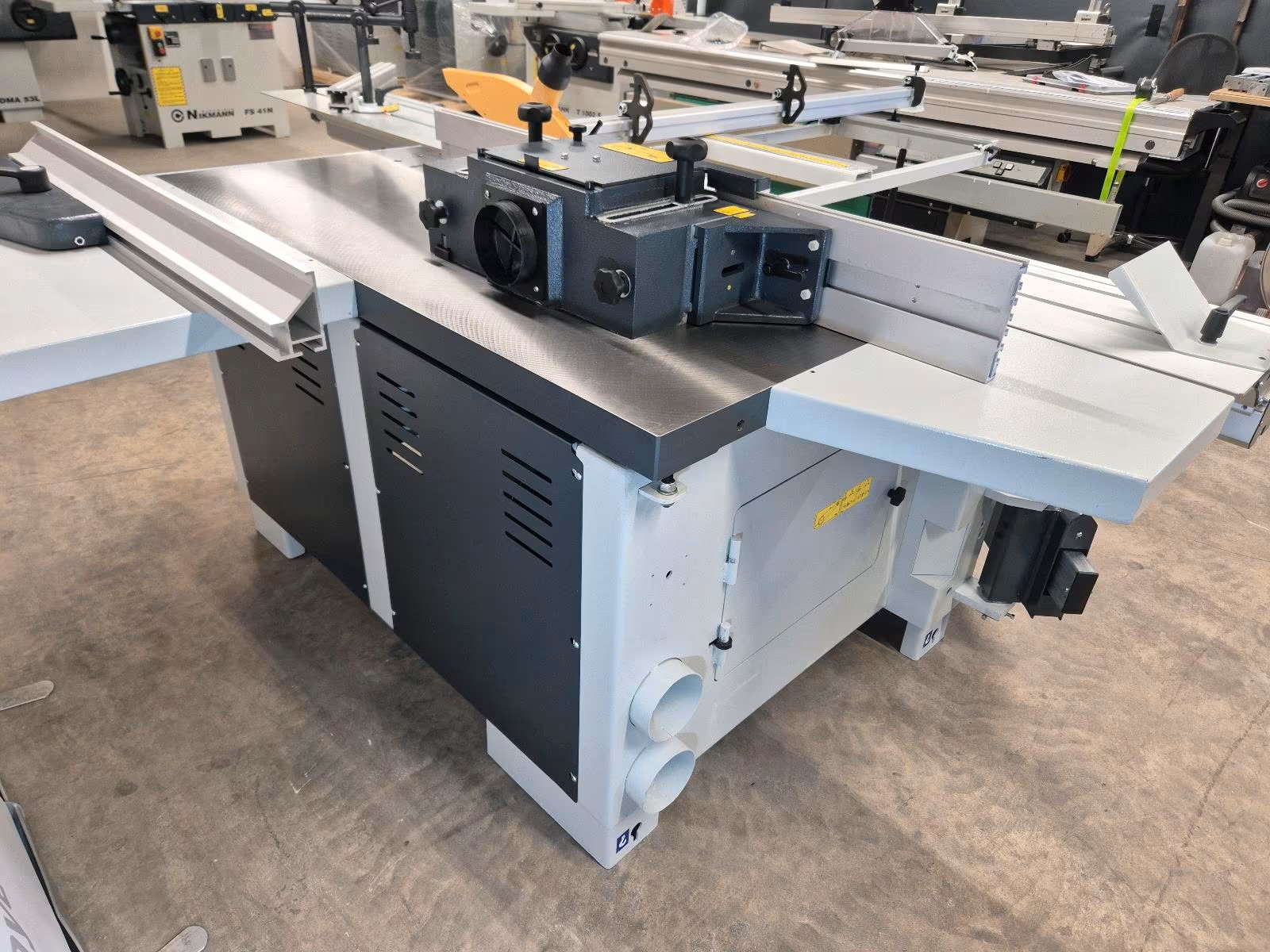

| SPINDLE MOULDER | |
| Spindle diameter, mm | Ø 30 |

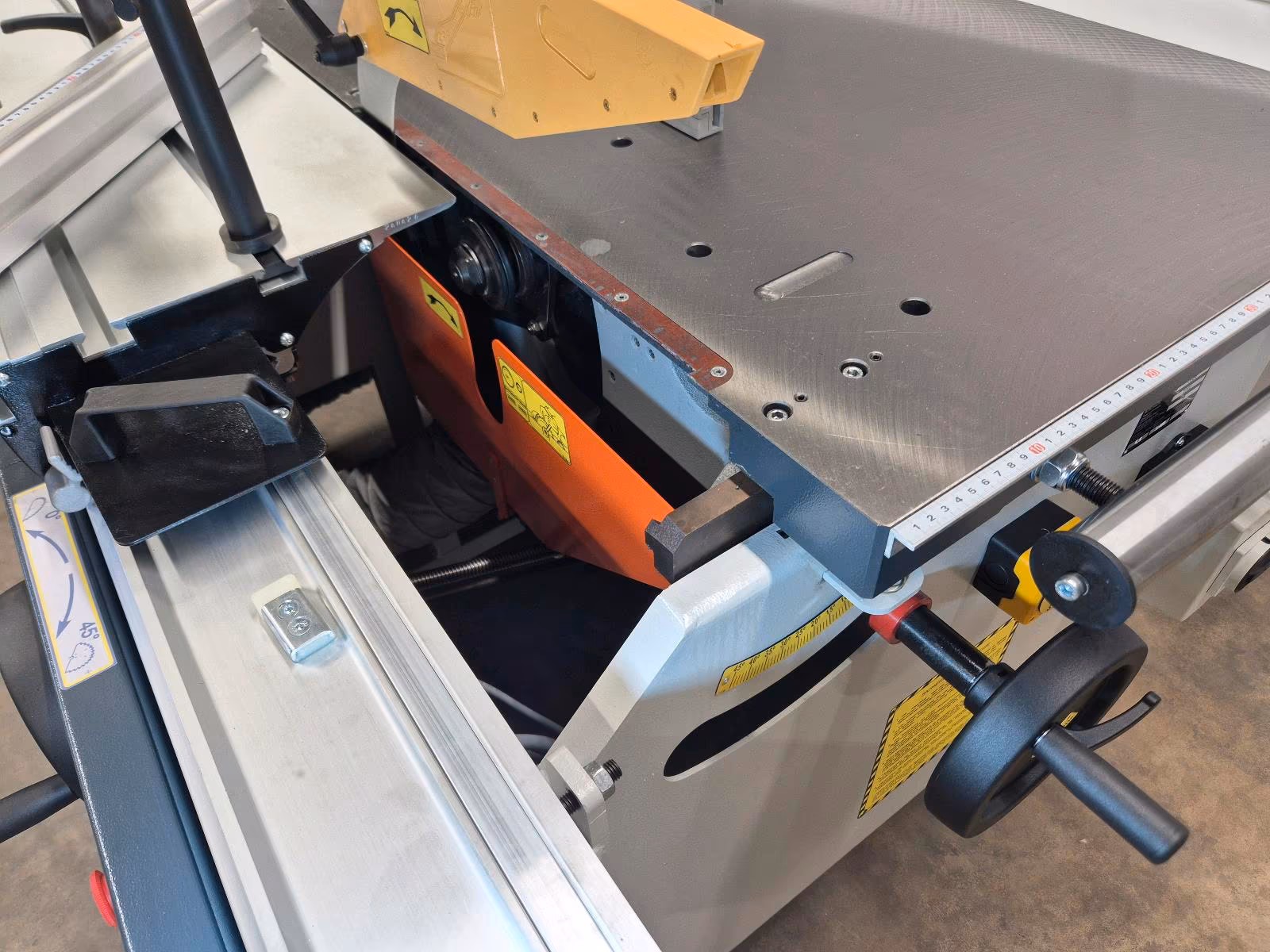

| Spindle tilting | 90° / 45° |
| Vertical movement of the spindle, mm | 175 |
| Working height of the spindle, mm | 125 |
| Max. tool diameter, mm:
for profiling for tenoning |
Ø 250 Ø 320 |
| Spindle with Morse cone for changeable arbor | МК4 |
| Diameter of the openings in the working table | Ø 260 |
| Max. diameter /depth of the tool moving under the working table surface, mm | Ø250 / 60 |

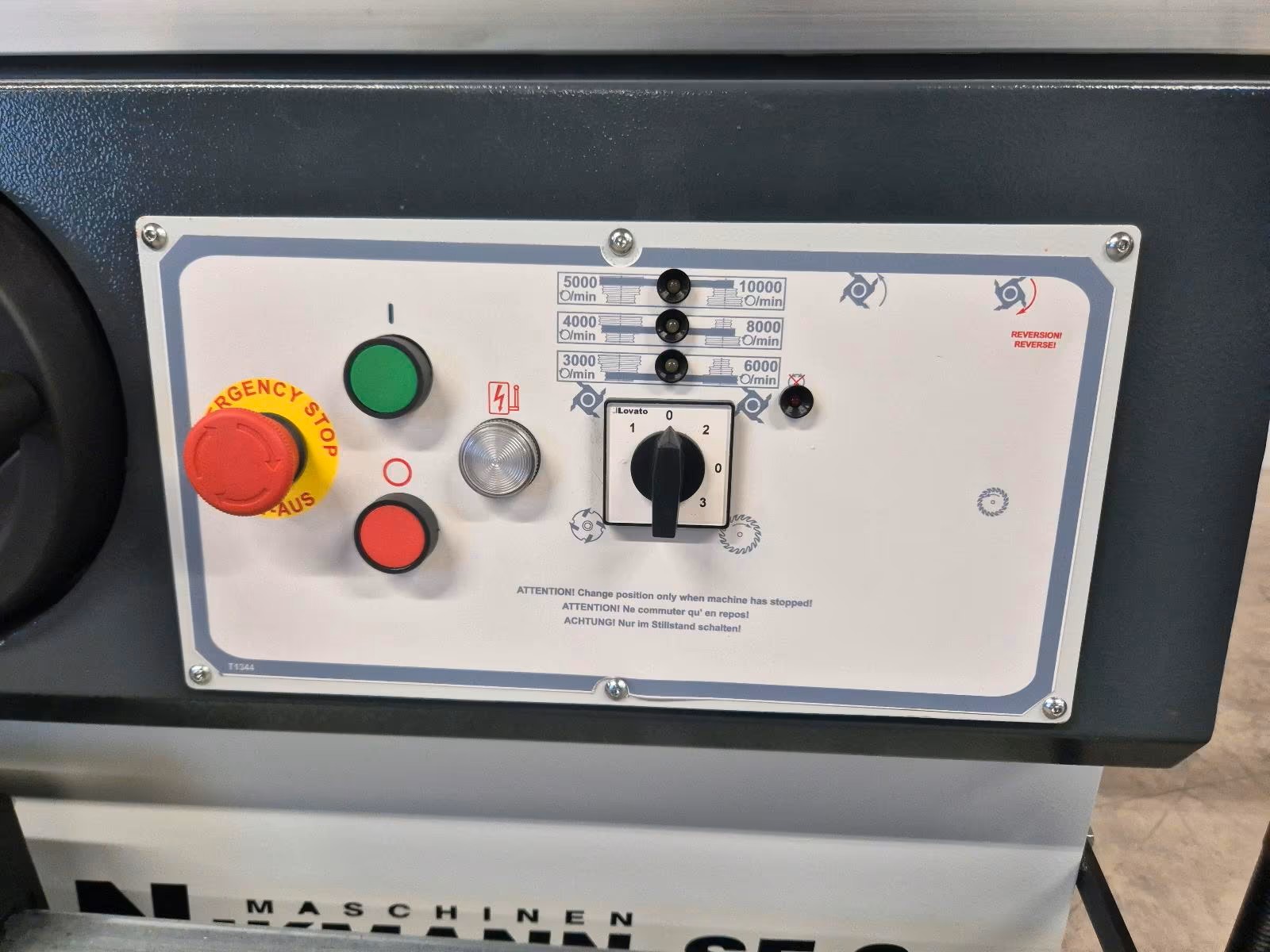

| Spindle speed (two-speed), min-1 | 10000/ 8000/ 6000/
5000/ 4000/ 3000 |
| Motor power (two-speed), kW (HP) | 3.2/4.2 (4.3/5.5) |
| Dust collection port diameter, mm
under the working table; by the safety device |
Ø 120 Ø 120 |

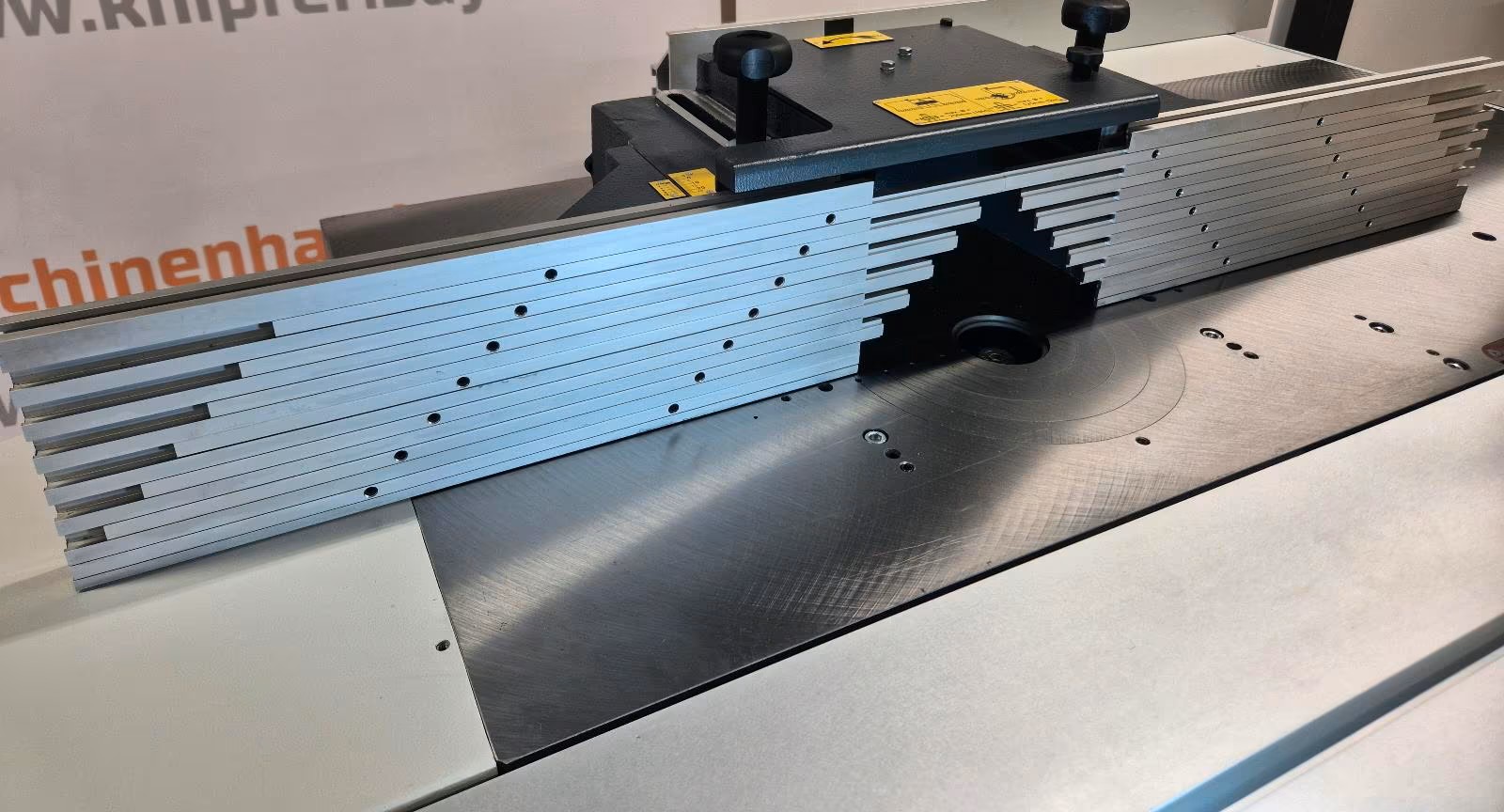

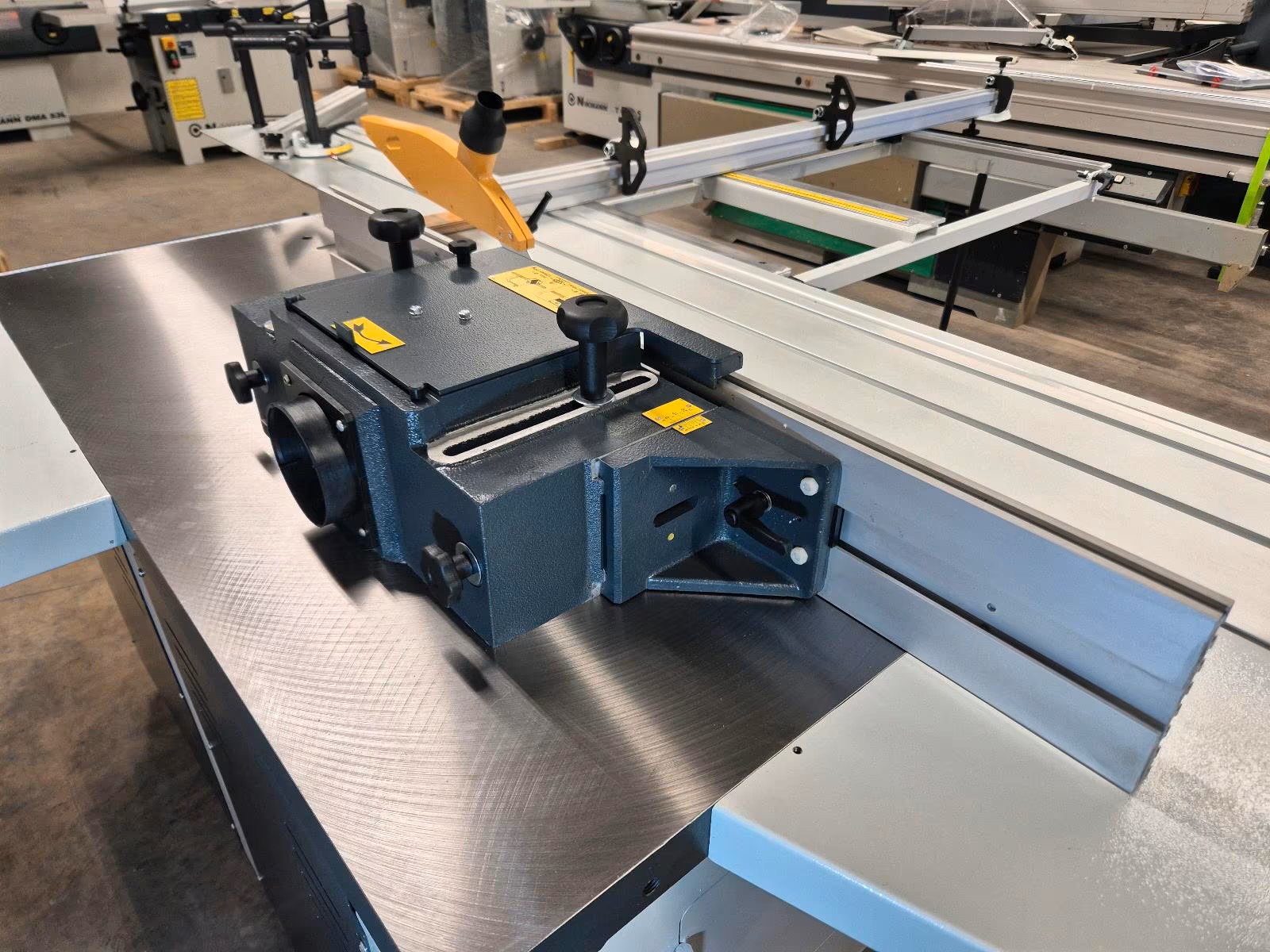

| Spindle protector with supporting guides, L, mm | 500 |
| GENERAL TECHNICAL DATA | |
| Working table dimensions, mm | 1450 x 650 |
| Sliding table dimensions, mm | 2300 х 350 |
| Dimension of additional frame for sliding table L / B, mm | 620 / 1200 |
| Weight, kg | 790 |
| Required area, m | 6.0 x 7.0 |
| OPTIONS | |
| Scoring unit with: | |
| Saw blade diameter, mm | Ø 120 |
| Spindle diameter, mm | Ø 20 |
| Spindle speed, min-1 | 8000 |
| Motor power, kW (HP) | 0.75 (1.0) |
| Motor power main circular, kW (HP) | 4.0 (5.5) |
| Miter fence without extension, mm | 600, 900, 1219 |
| Extension for miter fence, mm | 600, 900 |
| Maximal width of cut with the rip fence – complete extension table and rip fence, mm | 1600 |
| Dust extraction pipe with hose | 1600 |
| Short fence with angle stops | |

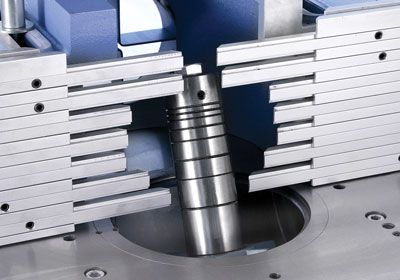

| Spindle protector for profiling with Integral safety guides, mm | 350, 500 |
| Left / right spindle rotation | |
| Spindle speed (two-speed), min-1 | 15000/ 9000/ 7500/
6000/ 4500/ 3000 |
| Motor power (two-speed), kW (HP) | 4.0/5.5, (6.1/7.4) |
| Changeable arbor МК4 diameter / usable height, mm | Ø1 ¼”/125, Ø32/125, Ø35/125, Ø40/125 |

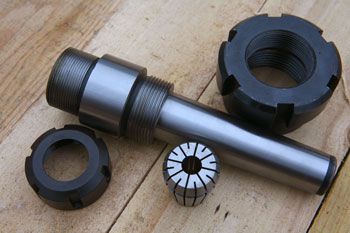

| Changeable arbor for working with ER32 clamps | |
| Tenoning table and tenoning hood, mm | Ø 320 |

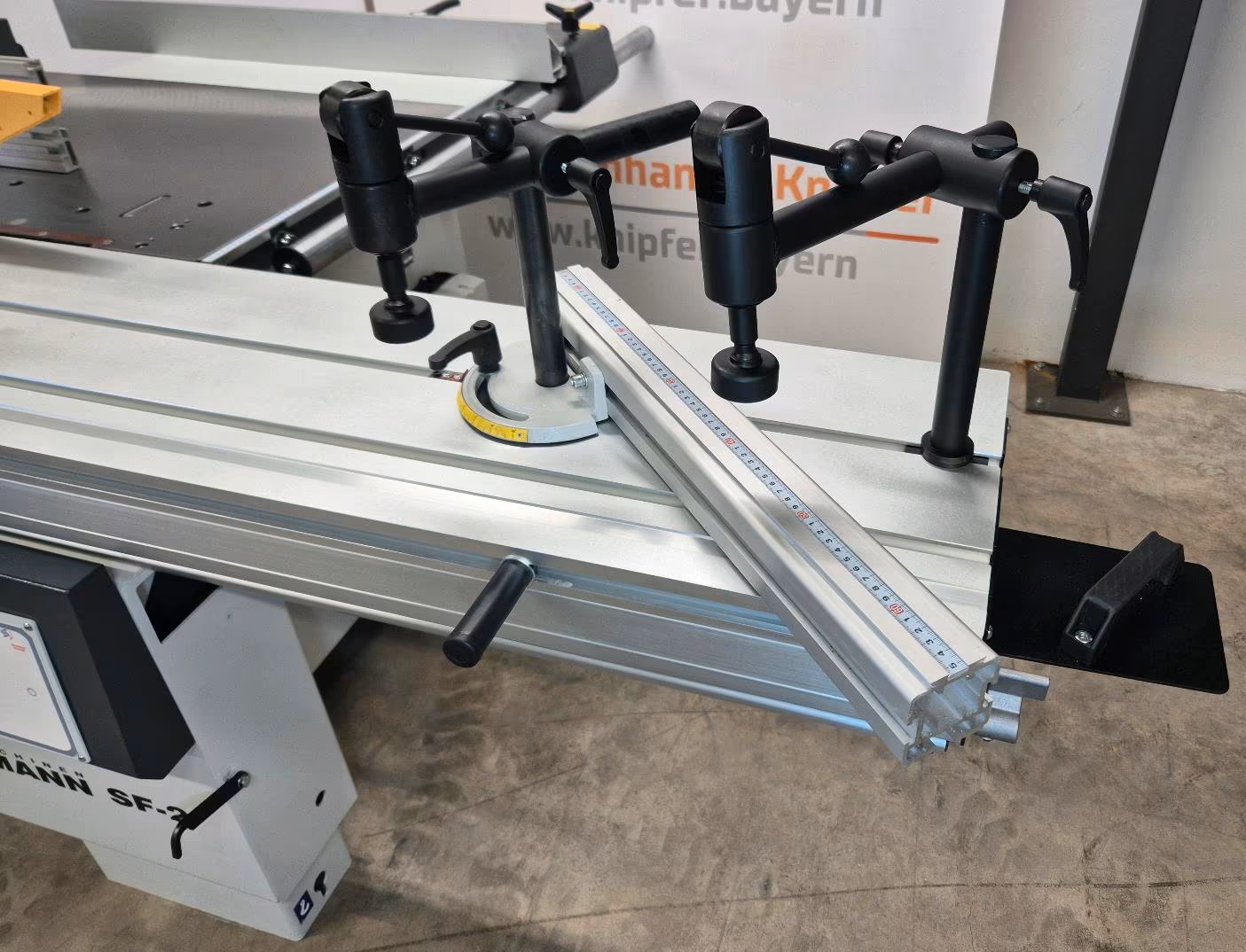

| Clamping device MORI | |
| Sliding table, mm | 2544, 2800, 3000, 3200 |
| Maximal width of cutting with scoring unit, mm | 2400, 2600, 2900, 3100 |
| Bracket table 500x320mm to the sliding table |
