Nikmann S315/S315A formatrundsav
Nikmann S 315 formatrundsav

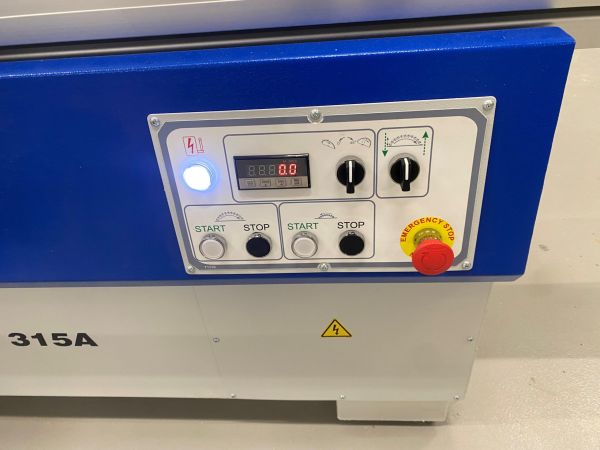

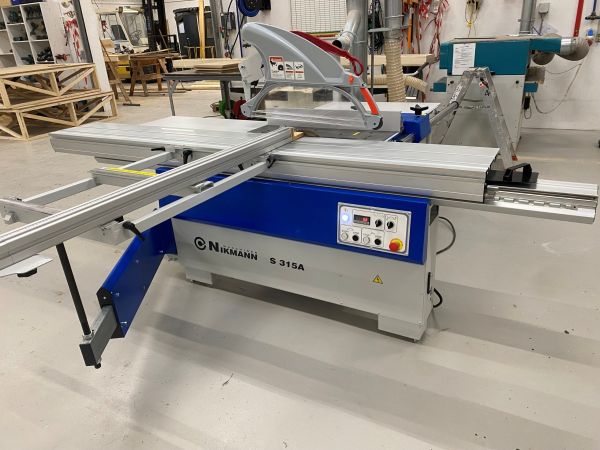

Nikmann S 315A formatrundsav er med elektrisk klingebevægelser
Strandard alurullebord 2200 mm
Kan også leveres i 2600 – 2800 – 3000 og 3200 mm
Max. skærelængde med forrids: 2150 – 2400 – 2640 – 2900 og 3100 mm
Aluminum sliding table with hardened steel high-precision guides. Telescopic fence 1500 mm with two turnable supports. Stable movable frame for machining of heavy flatness. Rip fence with micrometric adjustment. Saw blade tilt to 45° with scale report. New design of the constuction.
| STANDARD PERFORMANCE | S 315 |
| Saw blade diameter – max /min | Ø 315/ Ø 250 |
| Spindle diameter, mm | Ø 30 |
| Working table dimensions, mm | 800 x 550 |
| Sliding table dimensions, mm | 2300 x 350 |
| Maximal length of cut with scoring unit, mm | 2150 |
| Maximal width of cut with the rip fence, mm | 950 |
| Maximal height of cut 90°/45°, mm | |
| – With disk Ø 315 mm | 102 / 72 |
| – With disk Ø 250 mm | 70 / 49 |
| Motor power, kW (HP) | 3.0 (4.0) |
| Spindle speed, min-1 | 4000 |
| Dust collection port diameter, mm | Ø 120 |
| Weight, kg | 480 |
| Required area, m | 6,0 x 7,0 |
| OPTIONS | |

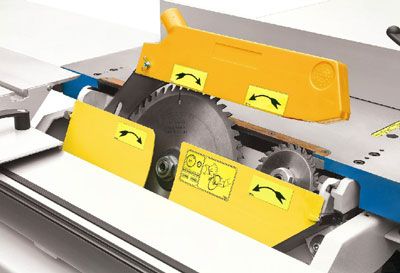

| Scoring unit with: | |
| Saw blade diameter, mm | Ø 120 |
| Spindle diameter, mm | Ø 20 |
| Spindle speed, min-1 | 8000 |
| Motor power, kW (HP) | 0.75 (1.0) |
| Motor power main circular, kW (HP) | 4.0 (5.5) |
| Sliding table, L ,mm | 1600, 2544,2743, 3000,3200 |
| Maximal width of cutting with scoring unit, mm | 1270, 2400,2640, 2900,3100 |
| Maximal width of cut with the rip fence, mm | 1270,1500 |
| Dust extraction pipe with hose | |
| Dust extraction box with hose | |
| Miter fence |
