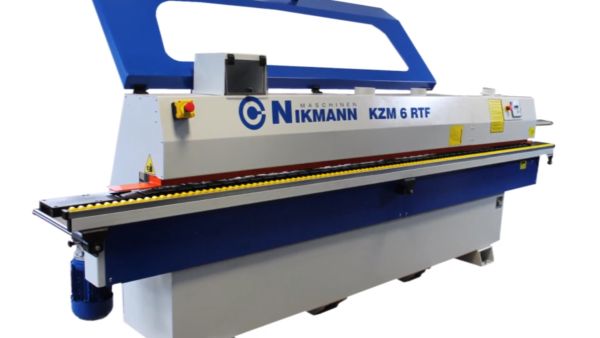

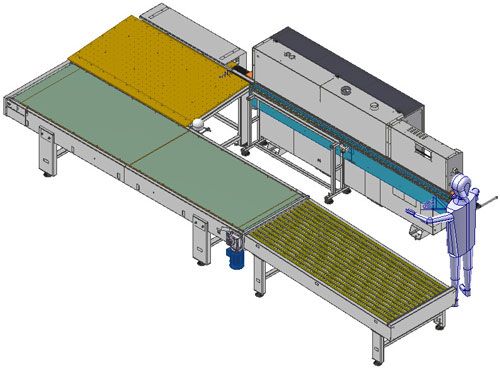

Nikmann KZM6 2RTF CNC kantlimer:

Compact design, fast and easy setup, complete automation.

One-side edge banding machine right execution. Edge’s support – up to ø 600 mm. Exchangeable Teflon glue tank under melting roller. Apply the glue by means of glue roller in a direction identical as the piece direction without need of adjusting towards material’s thickness. Two zones  for electronic regulation of the glue temperature. Automatic lowering the temperature of the glue at recess. A guillotine for preliminary cutting of thick PVC /ABS edges  max. 3 x 60. Squeezing area: three rollers – the big positive pressure and two cone rollers. Pressing with pneumatic. Ending trim unit with two HF motors – 200Hz, 12000rpm. Circular blades Ø110 х Ø32, Z=20 teeth – 2 pieces. Unit for upper and lower milling with vertical and horizontal adjustment with two HF motors 200 Hz, 12000 rpm and milling heads  ø 75mm, Z = 6; 15°, R2 or R3 mm (option). Rounding unit with two HF motors -200Hz, 12000rpm. Diamond milling head – PCD CUTTER D68/61x d16 x 7  Z=4 R2 or R3 (option). Pre-milling unit – two HF motors – 1.5 kW, 12 000 min-1. Diamonds milling heads –  PCD CUTTER D.60 x d20 x 65  Z 3+3. Edge scraper unit, R2 or R3 mm (option). Glue scraper unit. Polishing unit – two motors, two polishing discs 2хø125mm, 2×0.18kW, 2800 min-1.

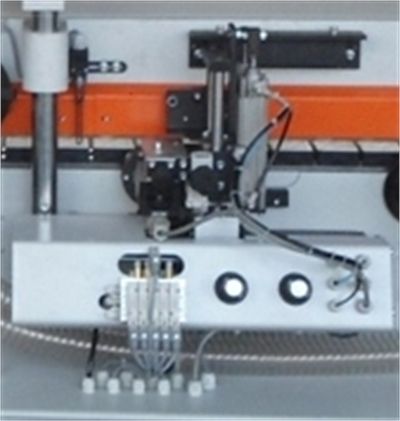

IR lamp (option). Spray system before Pre-milling group  (option). Spray system after Edge scraper unit  (option). Nesting group (option).

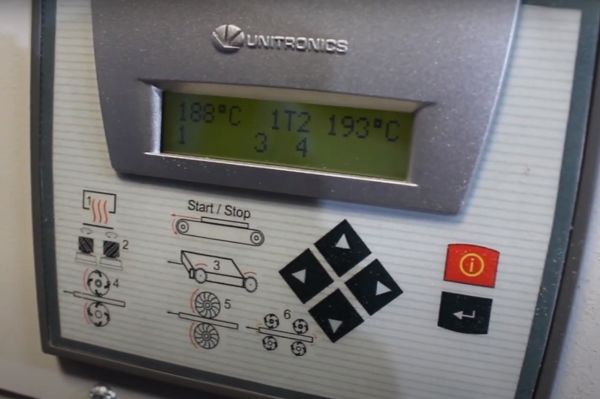

Central manual adjustable upper squeezing. Transport system with chain. Pressing rollers with bearings. Supporting beam with rollers – mobile. PLC Control panel at the front side of the machine. Environment temperature: + 18° max + 35°C.

..

STANDARD PERFORMANCE KZM6 2RTF CNC
Thickness of machined pieces, mm 8 -60
Minimum length of machined pieces, mm 100
Minimum width of the piece, mm 100
Thickness  of the edges, mm 0.4 – 3.0
Feeding speed, m/min 10 – 14

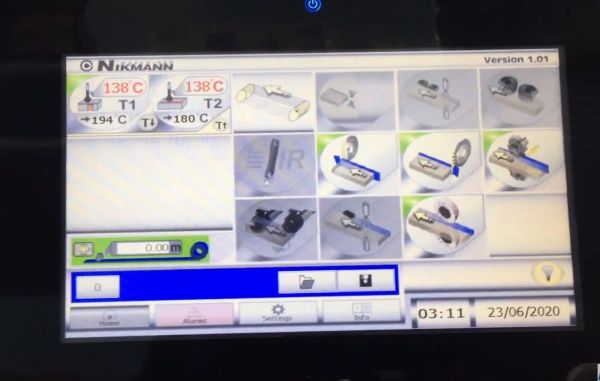

Touch screen 10‘‘
Edge trim unit
–  power of the motor, kW 2 х 0.22
–  RPM of the motor, min-1 12 000
Milling unit
–  power of the motor, kW 2 х 0.55
–  RPM of the motor, min-1 12 000
Rounding unit
 – minimum length of machined pieces, mm 100
 – power of the motor, kW 2х 0.55
 – RPM of the motor, min-1 12 000
Pre-milling unit
–  power of the motor, kW  2 x  1. 5
–  RPM of the motor, min-1 12 000

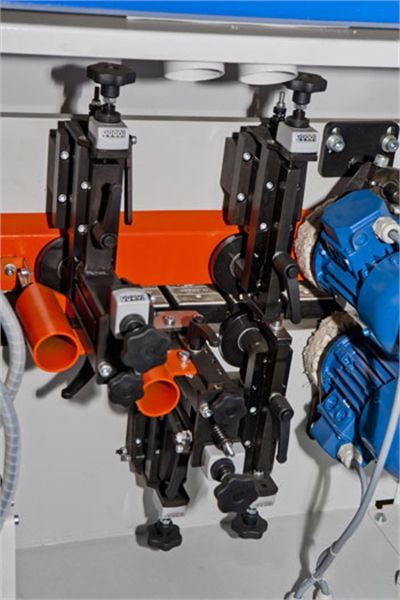

Edge scraper unit
Glue scraper unit
Polishing unit
–  power of the motor, kW 2 x 0.18
–  RPM of the motor, min-1 2800
Supporting beam – movable with rollers

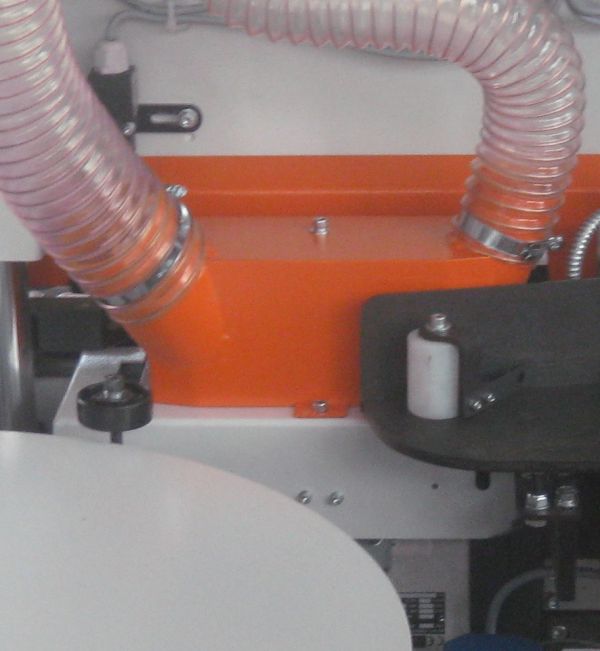

Diameters of the aspiration plugs, mm 1xØ120; 1xØ200
Compressed air pressure, bar 6.5
Total installing power, kW 12.5
Overall dimensions – L x B x H, mm 4900х1440х1730
Weight, kg 1700
OPTION
IR lamp
Spray system before Pre-milling group
Spray system after Edge scraper unit
Nesting group
Touch screen 12”
