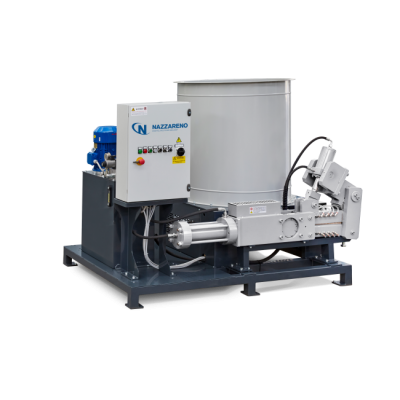

Nazzareno briketpresse fra 50 til 1000 kg/t
Nazzareno briketpresse fra 50 til 1000 kg/t
Technical specifications
| Models | 50-50 | 60-70 | 70-100 | 70-200 |
|---|---|---|---|---|
| Main motor (kW) | 4 | 7,5 | 11 | 11+11 |
| Auxiliary motors (kW) | 1,5 + 0,75 | 1,5 + 0,75 | 1,5 + 0,75 | 1,5 + 1,5 + 0,75 |
| Operating pressure (Bar) | 80 – 110 | 80 – 110 | 90 – 120 | 90 – 120 |
| Hourly production with wood chips and sawdust (kg) | 30 – 50 | 50 – 70 | 70 – 100 | 150 – 200 |
| Briquette Ø (mm) | 50 | 60 | 70 | 70 |
| Briquette Length (mm) | 30 – 300 | 30 – 300 | 30 – 300 | 30 – 300 |
| Weight (kg) | 960 | 1270 | 1600 | 2400 |
| Dimensions in millimetres (mm) | 1250 | 1250 | 1250 | 1500 |
| 1940 | 1940 | 1940 | 2030 | |
| 1470 | 1470 | 1470 | 1550 |
Technical specifications
| Models | 70-150 HQ | 80-250 HQ |
|---|---|---|
| Main motor (kW) | 15 | 22 |
| Auxiliary motors (kW) | 1,5 + 1,5 | 1,5 + 1,5 |
| Operating pressure (Bar) | 170 – 200 | 170 – 200 |
| Hourly production with wood chips and sawdust (kg) | 120 – 150 | 200 – 250 |
| Briquette Ø (mm) | 70 | 80 |
| Briquette Length (mm) | 30 – 300 | 30 – 300 |
| Weight (kg) | 1650 | 1780 |
| Dimensions in millimetres (mm) | 2180 | 2180 |
| 1700 | 1700 | |
| 1720 | 1920 |
Construction features of the FORCE 75-1000HQ press
Mekanisk briketpresse:
1 load-bearing base frame for mini silo Ø1500 H1000 mm;
1 oil tank for the hydraulic control unit;
1 mechanical presses with compression head and extruder, mounted beside the mini silo;

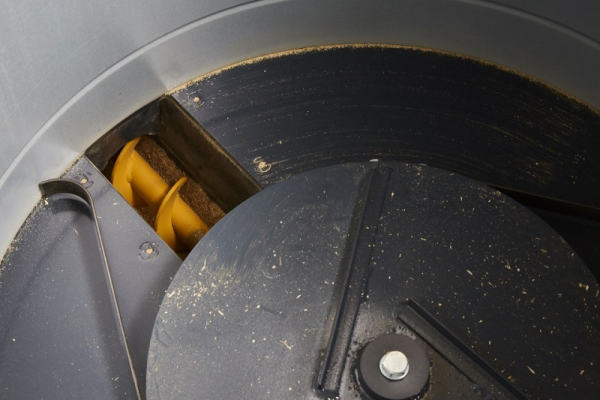

1 hopper with feeding screws;
1 hydraulic unit comprising solenoid valves, gear pumps, plates and hydraulic pipes;

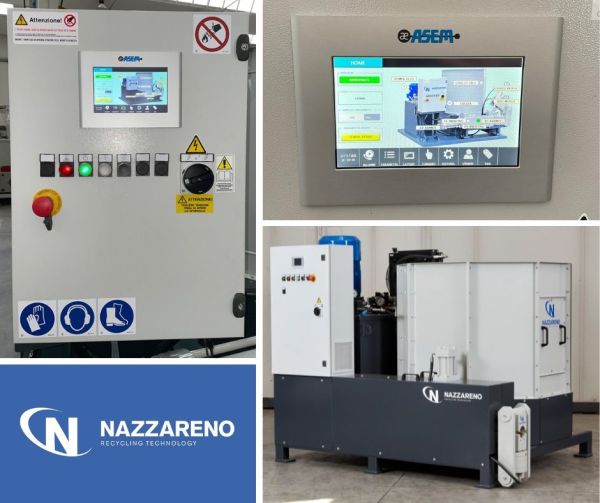

1 electric control panel. Three-phase line power supply 380V-50Hz.
Data sheet
| Hourly production rate | Briquette diameter (Ø) |
| 700 – 1000 kg/h | 75 mm |
| Installed power | Maximum moisture content of material |
| 45 kW | 15-18 % |
| Machine dimensions | Weight |
| 1900×4300 H1300 mm | 4800 kg |
