Meber 3VOL – 4VOL og SM 900 specialbåndsave

Meber 3VOL – 4VOL og SM 900 specialbåndsave

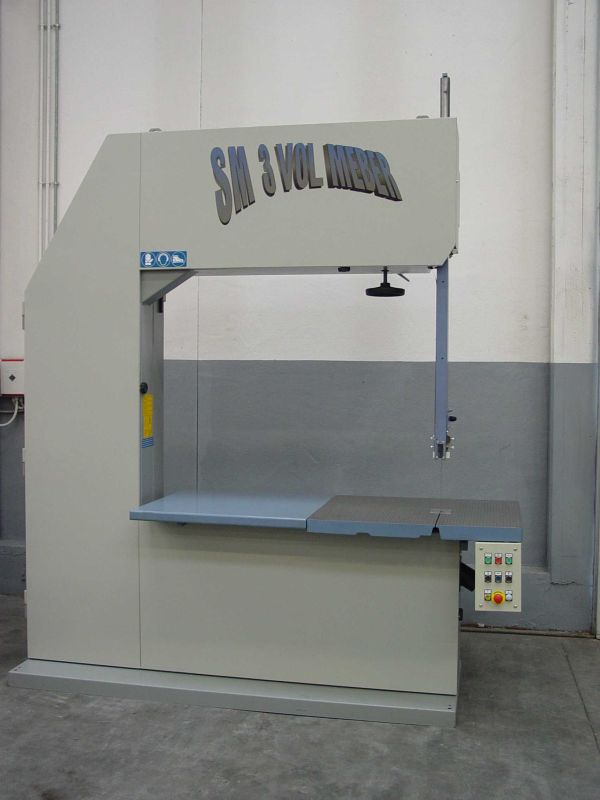

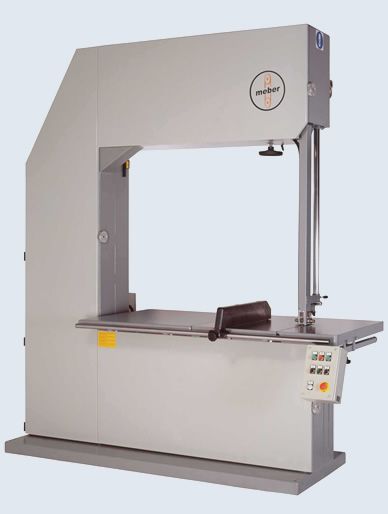

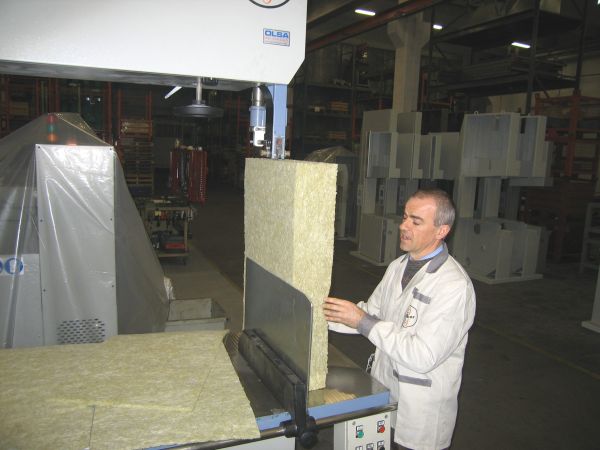

3  hjuls Band Saw: 3VOL

.

Specifications



Two                               speeds motor power kw2,2/3
Enginie R.P.M. 1400-2800
MAx./ min blande                               lenght mm.7660-7720
Sawblade width mm.10-30
Blade thickness mm.0.6
Cutting width mm.1520
Cutting Hight mm.1070
Flywheels diameter mm.600
Height of yhe working                               table from the floor mm.980
Diameter of the                               two dust exhausting mouths mm.100
Net                               weiht kg. 950
Max. overall dimensions mm.2600x900x2950h



4 hjuls båndsav: 4VOL

TECHNICAL DATA MEBER 4 VOL

Flywheel Diameter: mm 500
Flat size: mm 1575 x 810
Cutting capacity: MM 600 x 1200 (height x width)
Width of flyby: mm 35
Speed Volani g/M 715
Blade length mm 7080
Blade thickness mm 0.6
Worktop height mm 860
Motor power kw 3/4
Overall dimensions mm 2460x2200x1000
Net weight kg 800

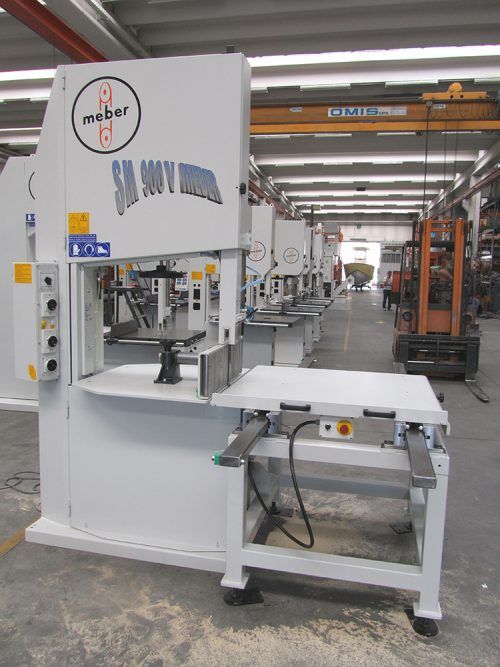

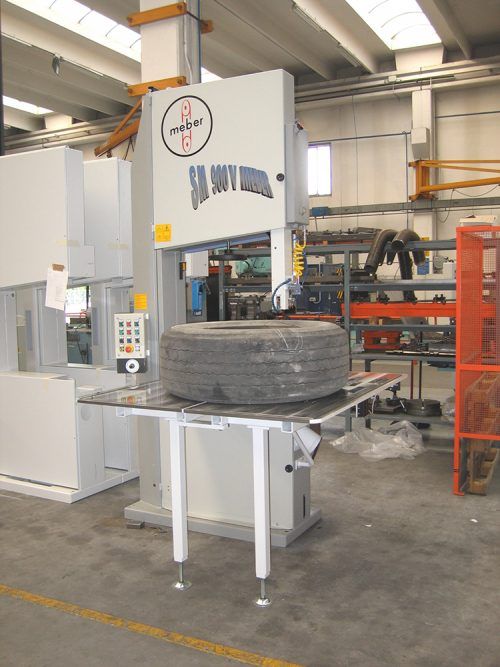

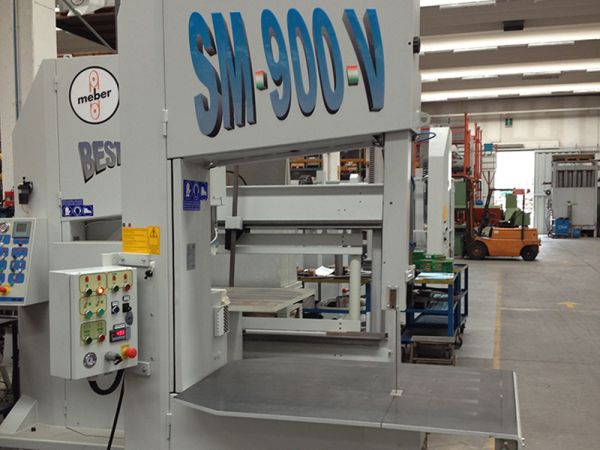

Special båndsav SM 900V
