Houfek Duplex pudselinie over/underpudser 910 – 1100 – 1350 mm
Houfek Duplex pudselinie over/underpudser:
910 – 1100 – 1350 mm

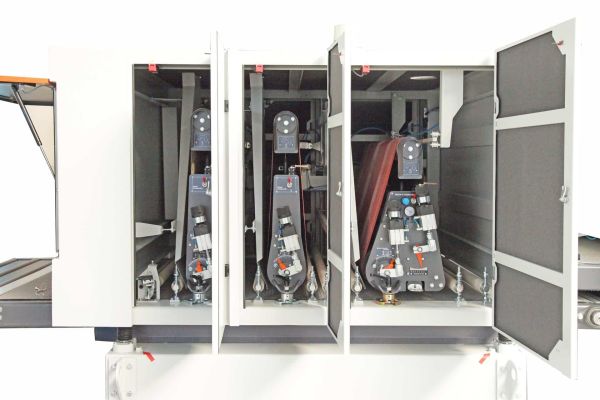

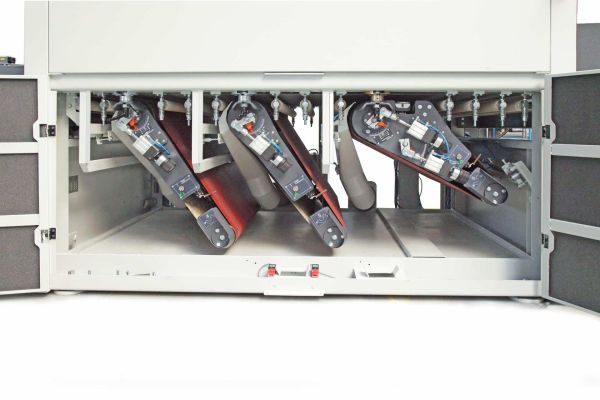

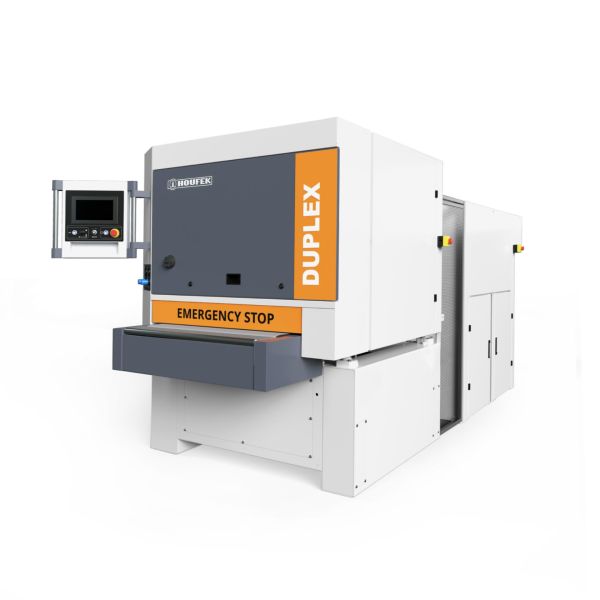

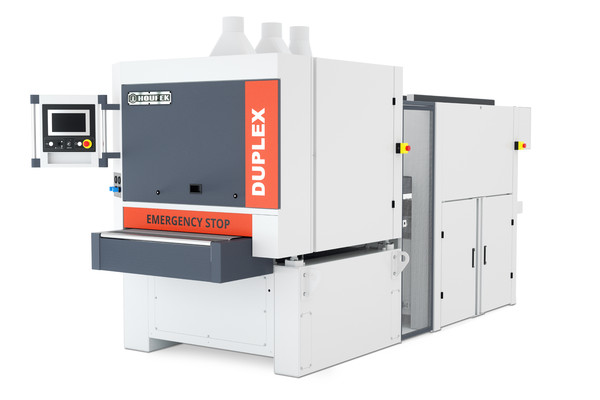

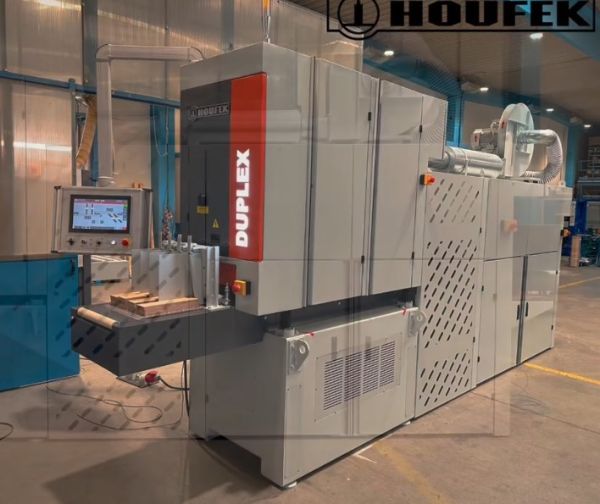

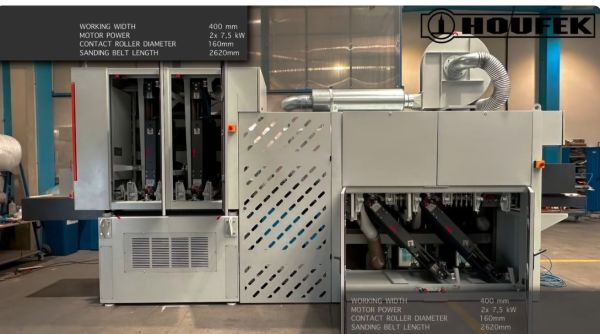

Duplex is highly efficient wild-belt grinder designed for double sided grinding of mostly board materials. The construction of Duplex is based on Buldog series and the application of double sided grinding increases the work productivity. The permanent desk height enables to use the Duplex in technological lines. The surface grinding quality and high level of automation ranks the machine in the highest class
| Motor performance | kW | 11 |
| Weight | kg | 4850-6000 |
| Pressured air consumption | l/min | – |
| Machine dimensions (L/W/H) | mm | 1600 × 4650 × 2160/1790 × 4650 × 2160/1990 × 4650 × 2160 |
| Desk lifting motor power | kW | – |
| Multipurpose diameter of exhaust nozzle | mm | 150 |
| Air suction speed | m/s | 20 |
| Voltage / frequency | V / Hz | 3/N/PE 400V/50Hz |
| operating pressure | bar | 5,5 |
| Work width | mm | 910/1100/1300 |
| Maximum workpiece height | mm | 10-160 |
| Max. operating width | mm | 910/1100/1300 |
| Min. – Max. workpiece height | mm | 10-160 |
| Feed belt speed | m/min | 4,5/9 |
| Grinding belt width | mm | 930/1120/1330 |
| Grinding roller diameter | mm | 160 |
| Grinding belt speed | m/min | 18,5 |
| Input of grinding belt motor | kW | 4 × 11 |
| Input of feeding belt motor | kW | – |
| Two-speed feeding belt motor | kW | 0,58/0,75 |
Standard equipment
- two grinding units : 1. Type R , 2. Type C + adjustable base – top part
- two grinding units : 1. Type R , 2. Type C + adjustable base – lower part
- 1. operating roller rubber coated D=160 mm, 90Sh
- 2. operating roller rubber coated D=160 mm, 45Sh
- NC-machine control colour Touschscreen 10,4″
- grinding belt width 1900 mm
- min. Workpiece length 300 mm (RR-RR), 500 mm (RC-RC)
- automatic switching – star / triangle
- ammeter for measuring the grinding unit
- motor current Oscillation control grinding belt by means of optic electric sensor with infrared beam
- fixed desk – moving grinding units
- mechanical correction of operating roller height depending on grinding belt grain size
- automatic setting of operating rollers into the pre-programmed positions
- two feeding speeds of workpiece 4,5/ 9 m/min
- rubber coated thrust rollers – 2 pcs for each grinding unit
- pneumatic disk brake of main motor
- noise pollution inspection
- standard packaging in nylon
- the machine is made according to CE standards
Optional accessories
- 20 HP (15 kw) motor
- 25 HP (18,5 kw) motor
- two speeds of grinding belt 9/18 m/sec (max. 11 kw)
- two speed motor for lifting the grinding unit
- steel roller replacing the rubber coated roller D=160 mm, D=200 mm
- rubber coated roller D=160 mm 30, 45, 60, 90 Sh
- rubber coated roller D=200 mm 30, 45, 60, 90 Sh
- pneumatic base with bounce and thrust
- automatic centering of feeding belt
- thrust bars for grinding short pieces
- frequency converter of feeding belt speed 3 – 12m/min
- frequency converter of the main motor- belt speed 3 – 24 m/s
- pneumatic time blow for cleaning the grinding paper
- pneumatic time blow with nozzle oscillation for cleaning 1 grinding belt
- parts cleaning module with orbital blow
- limiting the maximum workpiece reduction
- module for cleaning parts with rotating textile or nylon brush 140 mm diameter, 1,5 kw (2 HP)
- additional inlet – outlet
- vacuum desk
- air pump
