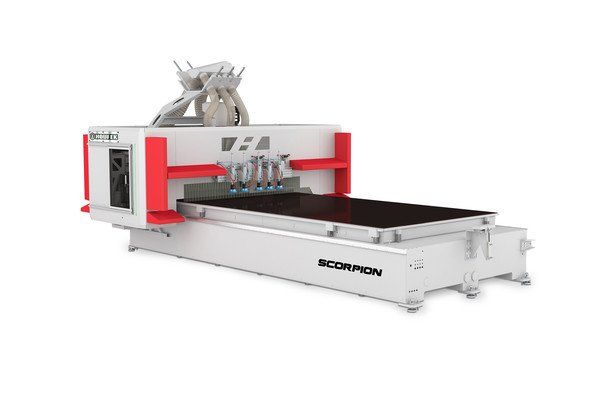

Houfek Scorpion 3 akset CNC maskine
Houfek CNC maskine type Scorpion
| Scorpion | H12 | H21 | ||
|---|---|---|---|---|
| Working field | ||||
| X-axis stroke | mm | 3900 – 4900 – 5900 – 6900 | ||
| Y-axis stroke | mm | 1900 | 2750 | |
| Z-axis stroke | mm | 250 | ||
| Workpiece dimension (X3) | mm | 3200 – 4200 – 5200 – 6200 | ||
| Workpiece dimension (Y3) | mm | 1250 | 2100 | |
| Workpiece dimension (Z3) | mm | 150 | ||
| Grooving saw (Ys) | mm | 1805 | 2655 | |
| Vertical drilling (Yd) | mm | 1720 | 2570 | |
| Horizontal drilling Y (Yhy) | mm | 1500 | 2350 | |
| Horizontal drilling X (Yhx) | mm | 1655 | 2505 | |
| Routing axis Y (Ye) | mm | 1500 | 2350 | |
| Feed rate | ||||
| X/Y-axis speed | m/min | 70 | ||
| Z-axis speed | m/min | 35 | ||
| Main spindle | ||||
| Power | kW (S6) | 4,6 – 8,0 – 12,0 | ||
| Max. revolution | ot./min | 24 000 | ||
| Tool holder | ISO 30 | |||
| Drilling aggregate | ||||
| Motor power | kW | 2,2 | ||
| Spindle and grooving saw speed | rpm/min | 3200 | ||
| Vertical spindles X+Y | No. | 6 + 4 | ||
| Horizontal spindles X+Y | No. | 2 + 1 | ||
| Grooving saw diameter | mm | 120 | ||
| Swivel saw 0°-90° – opt. | ||||
| Motor power | kW | 1,5 | ||
| Saw blade revolutions | rpm/min | 4850 | ||
| Swivel saw diameter (0°-90°) | mm | 150 | ||
| Tool magazine | ||||
| Pick-up tool magazine | No. | 11 | ||
| Rotary tool magazine | No. | 7 (14) | ||
| Working table | ||||
| Number of workplaces | No. | 1 (2-opt.) | ||
| Vakuum pump raster table | m3/h | 250 (500) | ||
| Front stop pins | No. | 4 – opt. | ||
| Installation information | ||||
| Installation power | KVA | 13 | ||
| Pressure air supply | atm | 7 | ||
| Weight | kg | 4000 – 4500 – 5000 – 5500 | ||
| Machine dimensions without fencing | ||||
| X | mm | 5150 – 6150 – 7150 – 8150 | ||
| Y | mm | 3150 | 4000 | |
| Z | mm | 2220 | ||
| Machine dimensions with fencing | ||||
| X | mm | 5500 – 6500 – 7500 – 8500 | ||
| Y | mm | 4000 4850 | ||

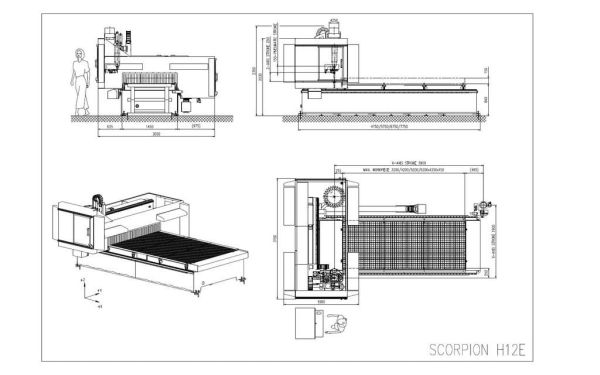

Standard equipment Scorpion H12
- X-axis working field X = 3200/4200/5200/6200 mm
- Y-axis working field Y = 1250 mm
- Z-axis stroke Z = 250 mm
- Max. height of workpiece 150 mm

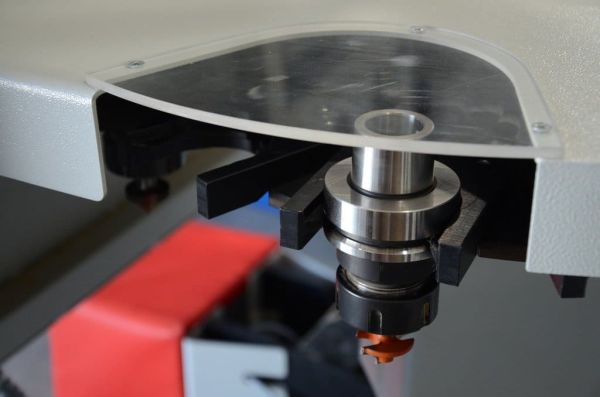

- Power of main vertical electrospindle 8 kW (S6) otáčky 24.000 rpm
- Tool holder ISO 30
- Air cooled electrospindle with ceramic bearings

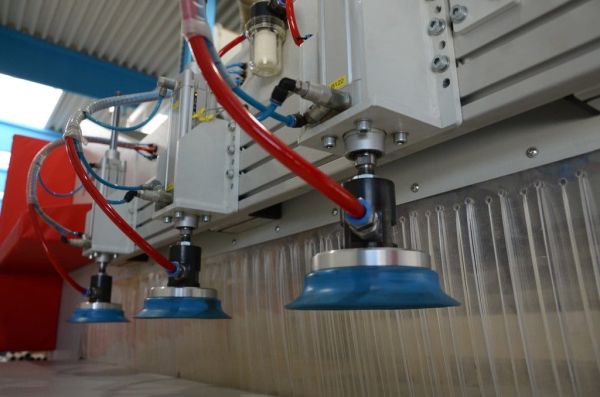

- Vakuum pump 250 m3/hod

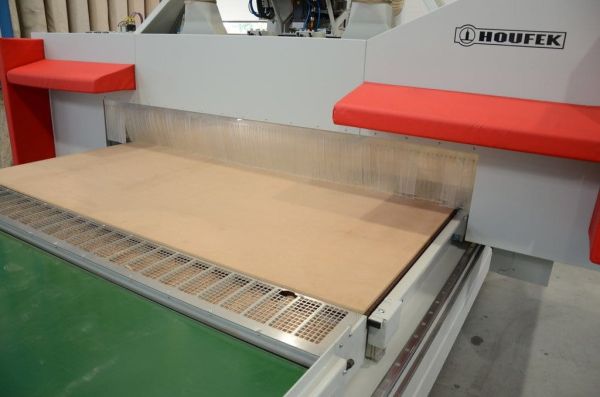

- Raster table with rear (4 pcs) and side (2 pcs) stop pins
- One workplace
- Automatic central lubrication
- Control system CNC SIEMENS 840 DSL
- NC-Hops Vario Basic
- Tool magazine with 11 positions
- Max. tool diameter 150 mm, max. tool weight 5kg

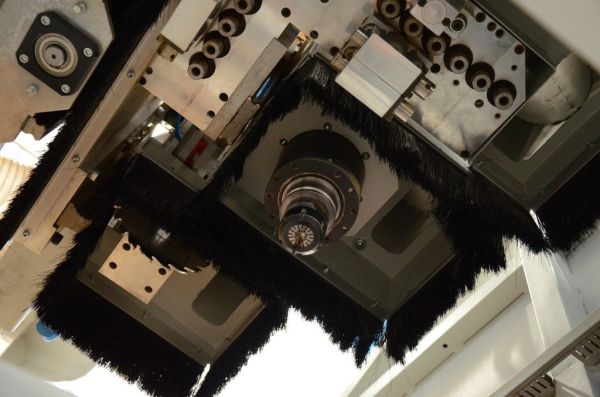

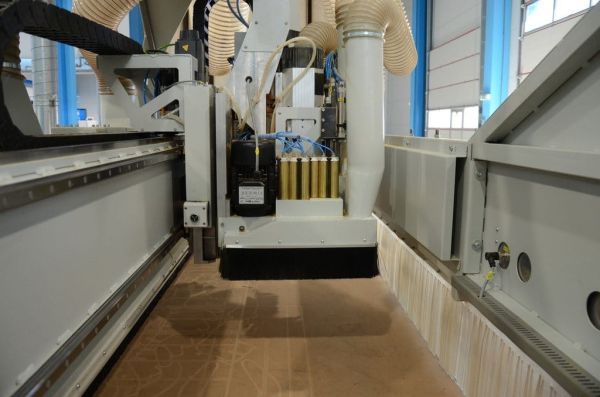

- Vertical spindles on drilling unit in X/Y axis (distance 32mm) 6+4
- Horizontal spindles on drilling unit in X/Y (distance 32mm) 2 (double) +1 (double)
- Saw blade on drilling unit in X-axis – diameter 120 mm
- Stroke of spindles on drilling unit – 70 mm
- Tool holder of spindles on drilling unit – diameter 10 mm with manual change
- Motor power of drilling unit 2,2 kW; speed of spindles 3200 rpm
Optional equipment Scorpion H12
- Electrospindle 4,6 kW (S6; max. 24.000/min.; ISO 30)
- Electrospindle 12 kW (S6; max. 24.000/min.; ISO 30)
- Rotary saw blade on drilling unit 0° or 90° in X-axis and Y-axis – diameter 150 mm
- Rotary tool magazine for automatic change with 7 positions
- Rotary tool magazine for automatic change with 14 positions
- Front (4 pcs) and side (2 pcs) stop pins on the table
- Second workplace
- Additional connections for pressure air 4x ø 6 mm
- Additional connections for vacuum 4x ø 10 mm
- Vacuum pump 500 m3/h
- Zásobník vakua 250 l
- Zásobník vakua 500 l
- Laserový projektor pro zobrazení konečné formy obrobku na desce polotovaru
- NC Hops aCADemy
- NC-Hops dodatečná uživatelská práva

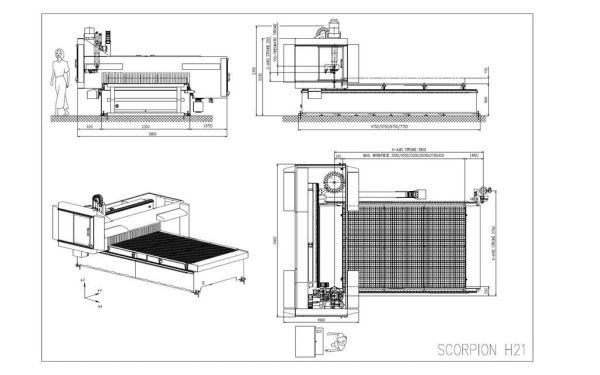

Standard Scorpion H21
- X-axis working field X = 3200/4200/5200/6200 mm
- Y-axis working field Y = 2150 mm
- Z-axis stroke Z = 250 mm
- Max. height of workpiece 150 mm
- Power of main vertical electrospindle 8 kW (S6) otáčky 24.000 rpm
- Tool holder ISO 30
- Air cooled electrospindle with ceramic bearings
- Vakuum pump 250 m3/h
- Raster table with rear (4 pcs) and side (2 pcs) stop pins
- One workplace
- Automatic central lubrication
- Control system CNC SIEMENS 840 DSL
- NC-Hops Vario Basic
- Tool magazine with 11 positions
- Max. tool diameter 150 mm, max. tool weight 5kg
- Vertical spindles on drilling unit in X/Y axis (distance 32mm) 6+4
- Horizontal spindles on drilling unit in X/Y (distance 32mm) 2 (double) +1 (double)
- Saw blade on drilling unit in X-axis – diameter 120 mm
- Stroke of spindles on drilling unit – 70 mm
- Tool holder of spindles on drilling unit – diameter 10 mm with manual change
- Motor power of drilling unit 2,2 kW; speed of spindles 3200 rpm
Optional equipment Scorpion H21
- Electrospindle 4,6 kW (S6; max. 24.000/min.; ISO 30)
- Electrospindle 12 kW (S6; max. 24.000/min.; ISO 30)
- Rotary saw blade on drilling unit 0° or 90° in X-axis and Y-axis – diameter 150 mm
- Rotary tool magazine for automatic change with 7 positions
- Rotary tool magazine for automatic change with 14 positions
- Front (4 pcs) and side (2 pcs) stop pins on the table
- Second workplace
- Additional connections for pressure air 4x ø 6 mm
- Additional connections for vacuum 4x ø 10 mm
- Vacuum pump 500 m3/h
- Zásobník vakua 250 l
- Zásobník vakua 500 l
- Laserový projektor pro zobrazení konečné formy obrobku na desce polotovaru
- NC Hops aCADemy
- NC-Hops dodatečná uživatelská práva
