Houfek  5 akset CNC bearbejdningsmaskiner

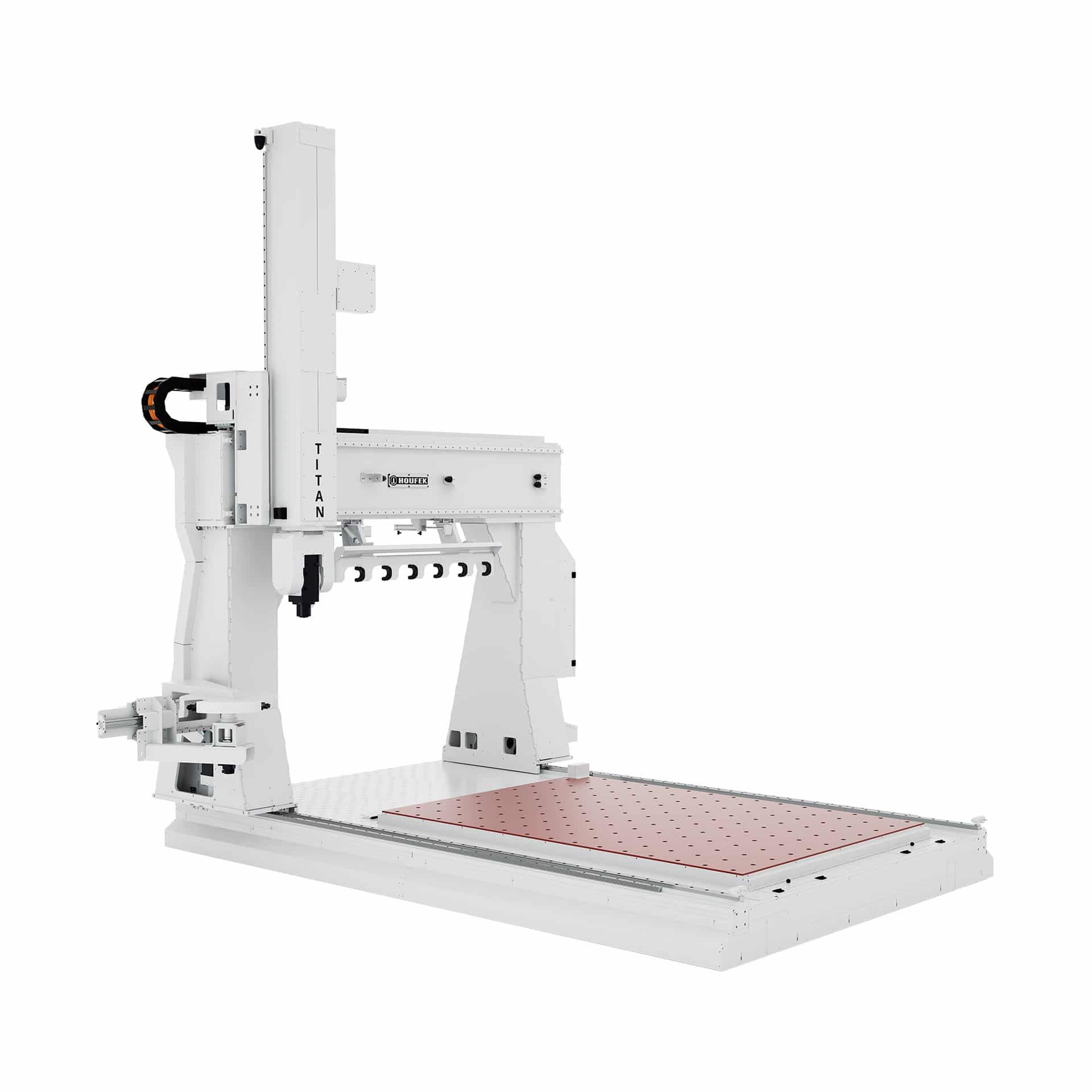

Type TITAN

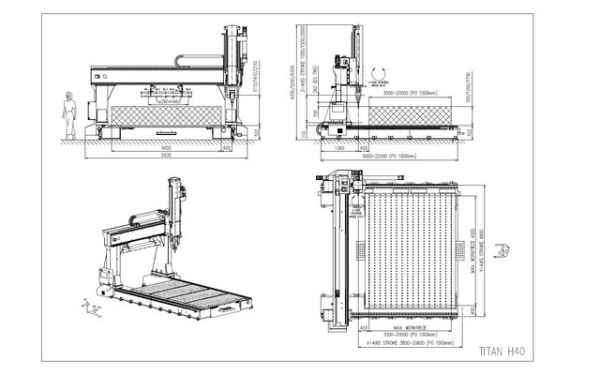

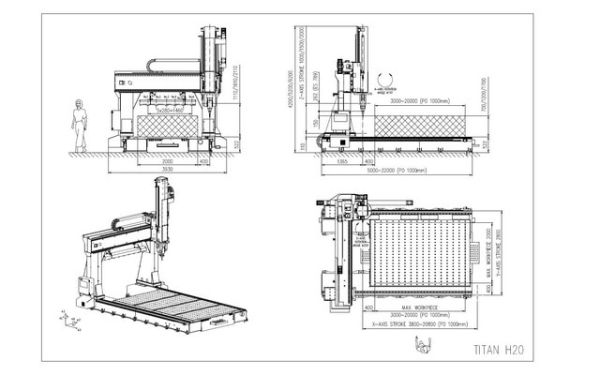

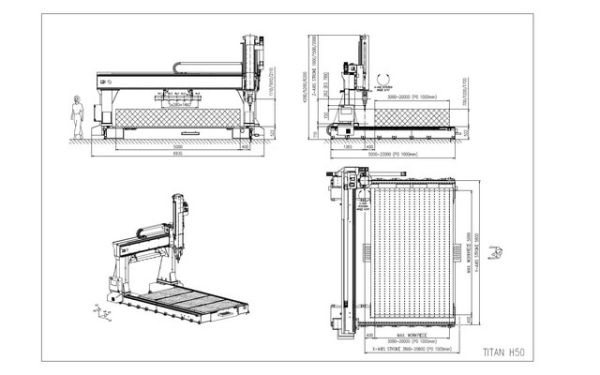

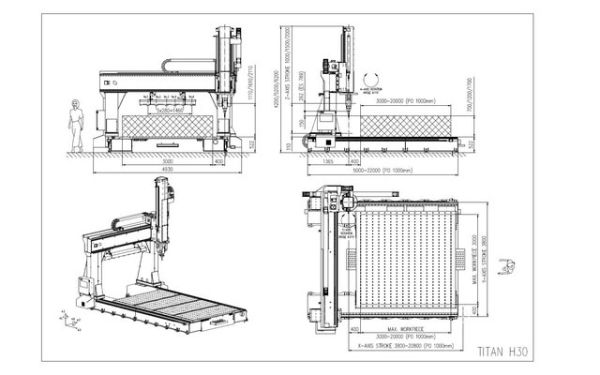

Titan Titan H 20 Titan H 30 Titan H 40 Titan H 50
Working field
X-axis stroke mm               3.800 – 20.800 (po 1.000 mm)
Y-axis stroke mm 2800 3800 4800 5800
Z-axis stroke mm                        1000 (1500, 2000)
Workpiece dimension (X3) mm 3.000 – 20.000 (po 1.000 mm)
Workpiece dimension (Y3) mm 2000 3000 4000 5000
Workpiece dimension (Z3) mm                         700 (1200, 1700)
Feed rate
X/Y/Z-axis speed m/min                                      50
A/C-axis speed °/min                                    5400

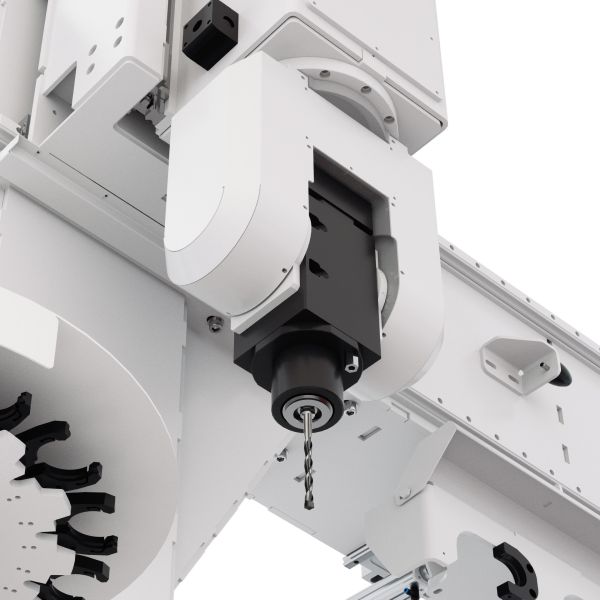

Two-axis head
Power kW (S6)                              12 – 15 – 18
Max. revolution ot./min              22000
Tool holder            HSK F63
Zdvih osy A °              +/- 110
Zdvih osy C °              +/- 210

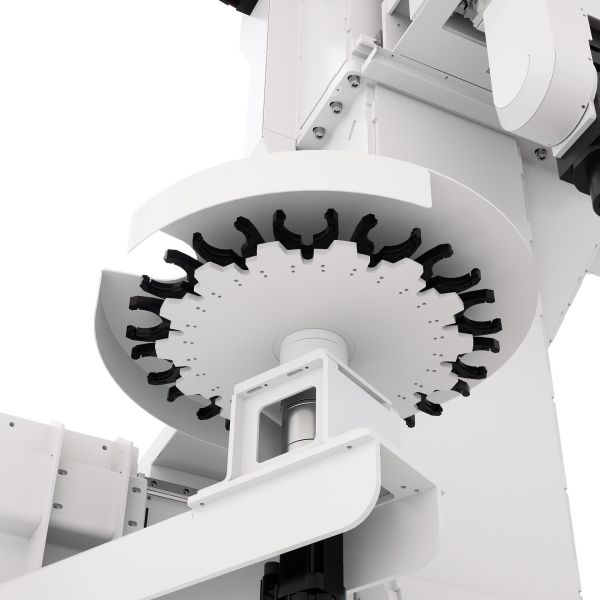

Tool magazine
Zásobník nástrojů podvěšený No.             6 (8, 12, 16 – podle šířky portálu)

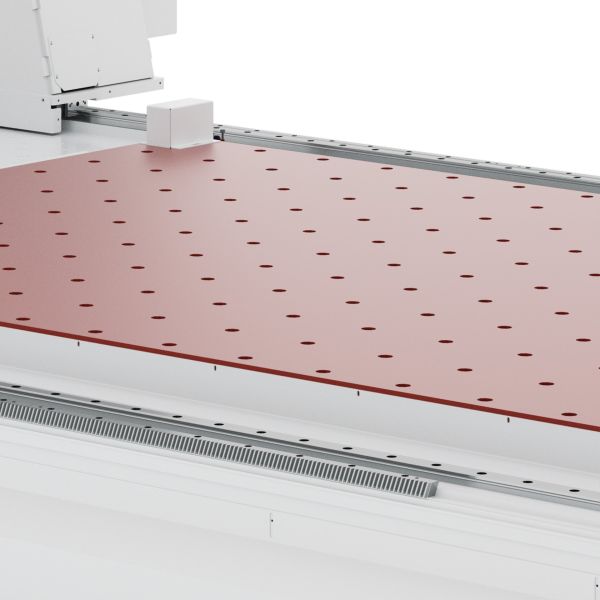

Working table
Number of workplaces No.                   1
Přídavné výstupy tlakového vzduchu              6x D=6
Installation information
Installation power kVA                 45
Pressure air supply bar                   7
Weight kg          dle typu a konfigurace stroje
Machine dimensions without fencing
X mm              5.000 – 22.000 (po 1.000 mm)
Y mm 4000 5000 6000 7000
Z mm                        4.700 (5.200, 5.700)
Machine dimensions with fencing
X mm 6.500 – 23.500 (po 1.000 mm)
Y mm 5500 6500 7500 8500

Parameters are approximate depend on the type and configuration of the machine
