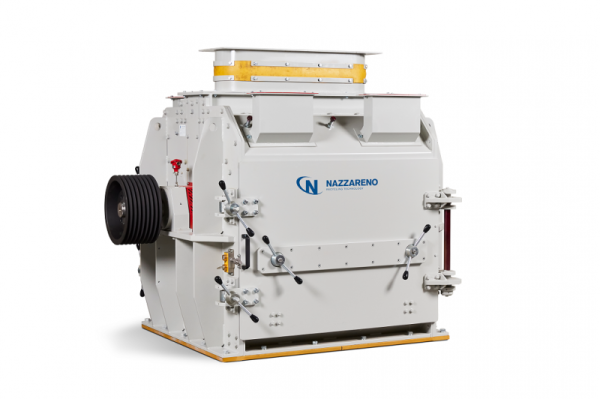

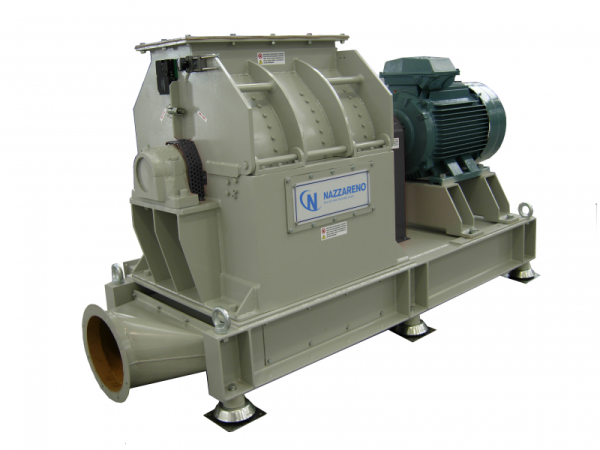

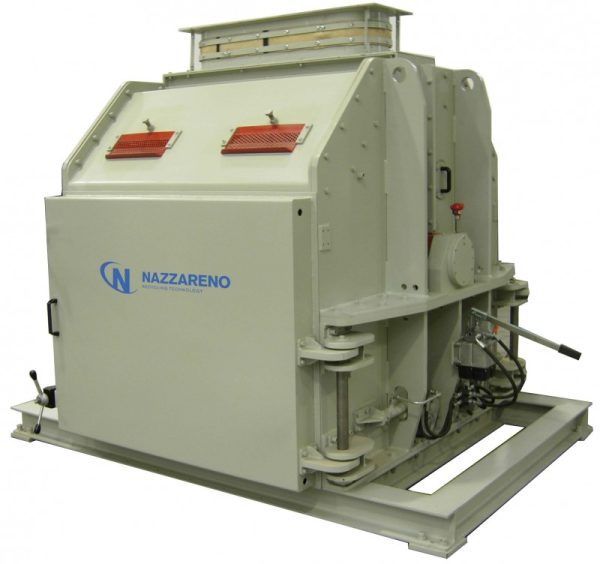

Nazzareno Dynamite Hammermølle fra 7,5 til 500 kW
Nazzareno Dynamite Hammermølle fra 7,5 til 500 kW
Our hammer mills were developed based on firsthand experience with waste wood processing plants. The vast range available allows you to adequately respond to any customer request. It is possible to process wet and dry materials without any limitation in terms of minimum or maximum quantities.
Technical specifications
| Models | DYNAMITE 220 | DYNAMITE 241 | DYNAMITE 441 | DYNAMITE 701 | DYNAMITE 901 | DYNAMITE 1201 | DYNAMITE 1501 | DYNAMITE 1851 |
|---|---|---|---|---|---|---|---|---|
| Installed powers (kW) | 7,5 | 7,50 – 18,5 | 18,5 – 30 | 37 – 55 | 55 – 90 | 90 – 250 | 250 – 355 | 400 – 500 |
| Loading inlet size (mm) | 150 x 220 | 197 x 240 | 197 x 440 | 260 x 700 | 260 x 900 | 280 x 1074 | 300 x 1200 | 580 x 1500 |
| Rotor Ø (mm) | 420 | 640 | 640 | 540 | 540 | 1000 | 1500 | 1800 |

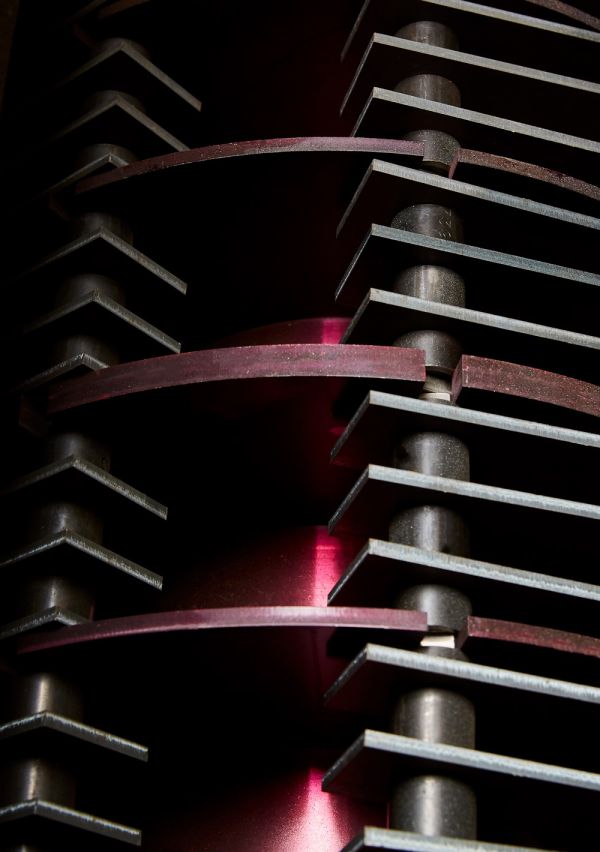

| Hammers | 18 | 20 | 40 | 82 | 108 | 192 | 360 | 440 |
| Weight (kg) | 450 | 550 | 860 | 1700 | 2000 | 4300 | 12000 | 18000 |
| Dimensions in millimetres (mm) | 1160 | 1200 | 1520 | 2130 | 2330 | 1690 | 2040 | 2700 |
| 540 | 740 | 740 | 860 | 860 | 1300 | 2080 | 2540 | |
| 640 | 1110 | 1110 | 1308 |
