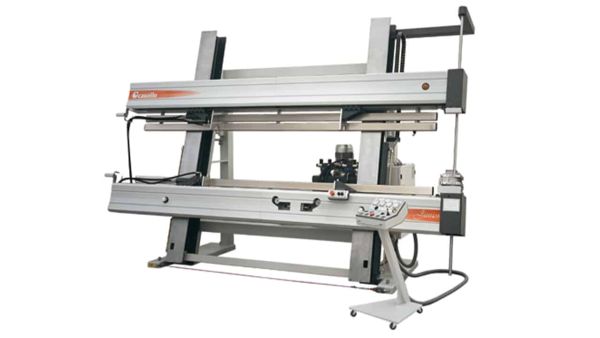

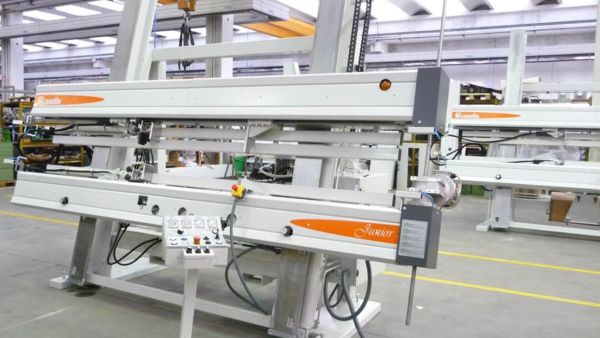

Casolin Junior rammepresse max emne 2500 x 3500 mm
Junior

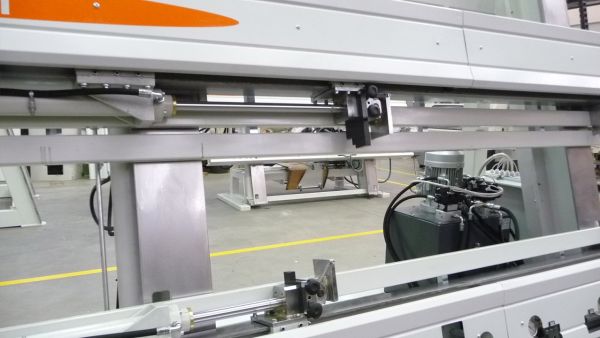

The automatic frame press model Junior is a machine born to satisfy the production needs of medium and large frame series. The machine is characterised by self-centring horizontal cylinders which make it possible to always work at the centre of the structure and to distribute the pressure perfectly over the frame.The positioning of the cross beam and horizontal cylinders can be done semi-automatically with the electronic controls , centrally positioned on the machine or, on request, automatically, by way of a photocell device which reads the dimension of the frame.
Machine ALL MADE IN ITALY.
Specifications
- Working height min/max 350/2100 (2500 on request)mm
- Working width min/max 250/3000 (3500 on request) mm
- Vertical pressure min/max 900/9000 Kg.
- Horizontal pressure for wach cylinder min/max 280/2800 Kg.
- Horizontal pistons stroke 100 mm

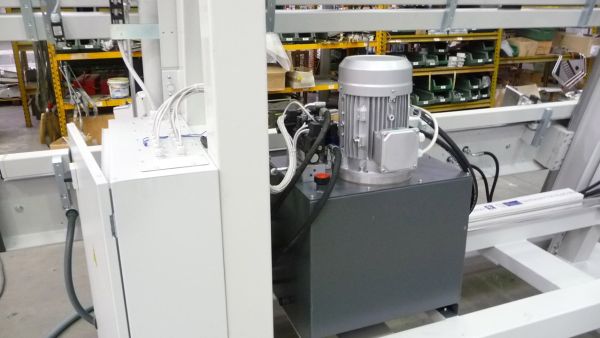

- Pump power 5,5 Kw
- Weight 2700 Kg.
