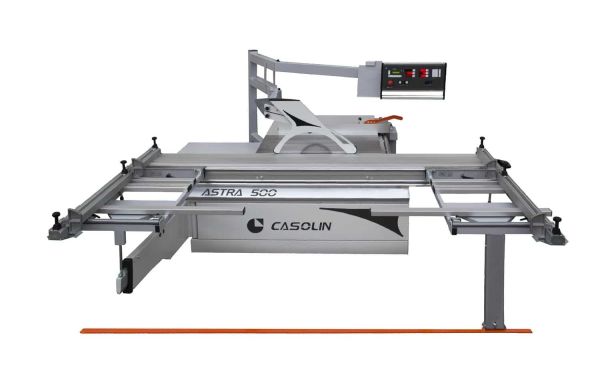

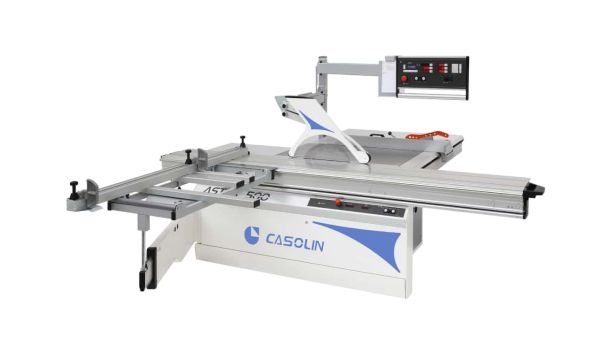

ASTRA 500

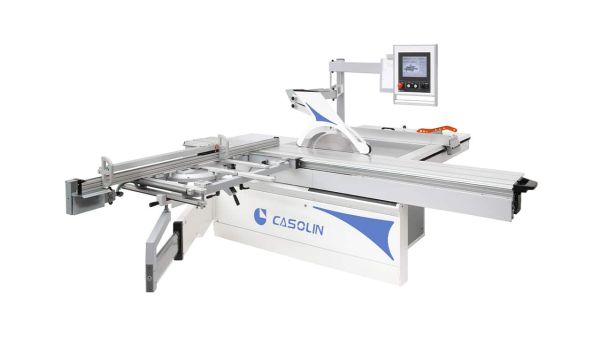

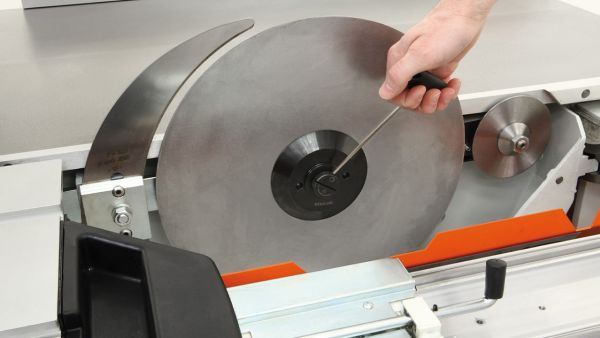

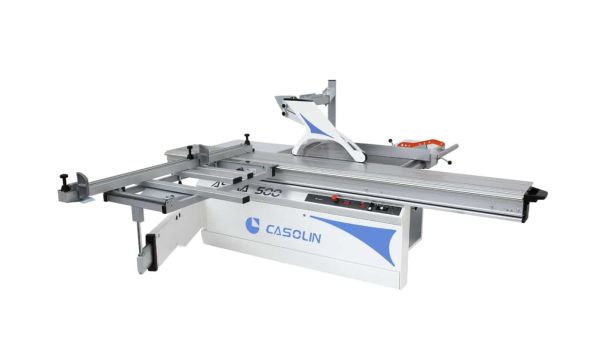

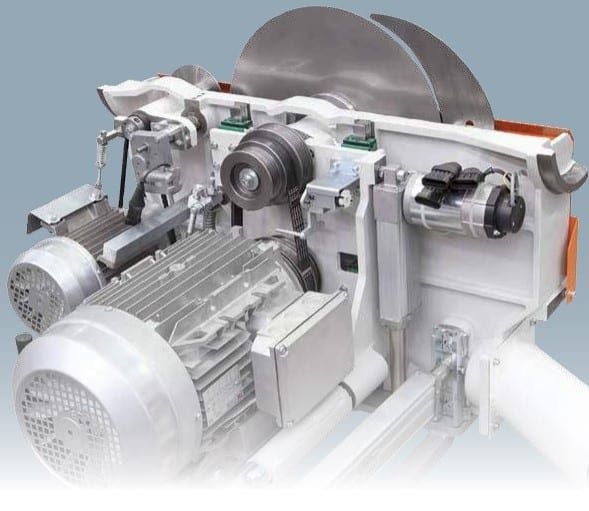

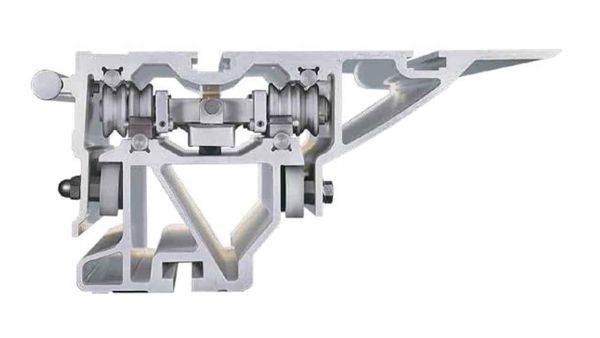

Circular saw Model Astra 500 for woodworking. Tilting blade group from 0° to 45.5 ° entirely of cast iron and very deep for optimum extraction of sawdust. Running on linear guides and ball bearing slides, large and specific for dusty environments. High wheelbase bearing / shaft blade for accuracy and vibration on the circular saw. Electric lifting angle and fully waterproof, permanently lubricated and maintenance-free. Quick-installation of the saw blade. Poly V belts oversized to ensure the transmission of high power in time. Viewer turns and digital inclination. Machine available in 4 versions:

  • Astra 500 basic version with motorized movement of the blade
  • Astra 500 5 CNC Posit with even motorized parallel fence
  • Astra 500 5 CNC QCP with even Hanging control panel

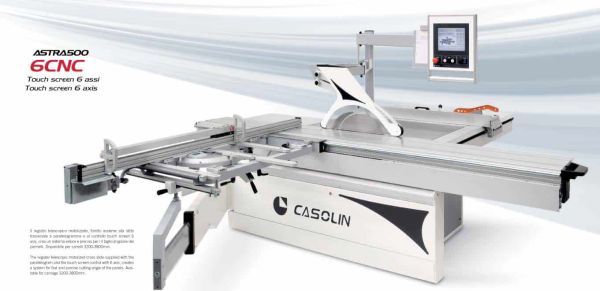

  • Astra 500 6 full vesion CNC with Touch Screen

Machine ALL MADE IN ITALY.

Specifications

  • Carriage legth: 2600-3200-3800-4300-5000 mm.

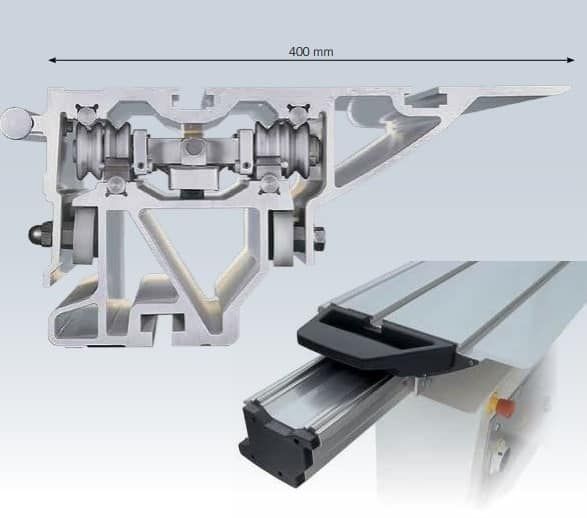

  • Carro width  400 mm.
  • Main blade diam. 300-500 mm. max. skærehøjde 175 mm
  • Optional main blade diam.550 mm. without scoring unit skærehøjde 200 mm
  • Main shaft diam. 30 mm.
  • N.3 speeds: 3000-4200-5000 r/min.
  • Tilting 0-45,5°
  • Height of cut 175 mm with blade diam.500 ( 200 mm with blade diam.550 optional )
  • Standard motor main saw Kw 4 ( Hp 5,5 )
  • Optional Kw 5,5-7,5-9,2-11 ,3 speeds
  • Optional Kw 5,5-7,5 with inverter 2500-5000 turns
  • Possibility to use the scoring blade even with the main blade of 400 mm mounted.

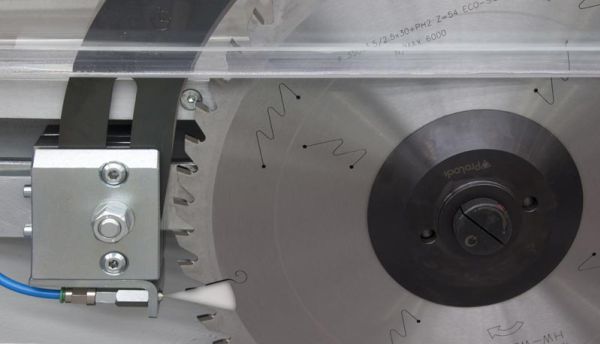

  • Scoring unit ( Optional)
  • Scoring 8500 r/min.
  • Scoring blade diam.120 mm.
  • Scoring shaft diam.20 mm.
  • Motorised scoring unit with electrical movements , motor Kw 0,75 ( Hp 1 ).
